HMC1082LP4ETR - Analog Devices

Description: RF Amp Single Power Amp 18GHz 5.5V 24-Pin QFN EP T/R

Download HMC1082LP4ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

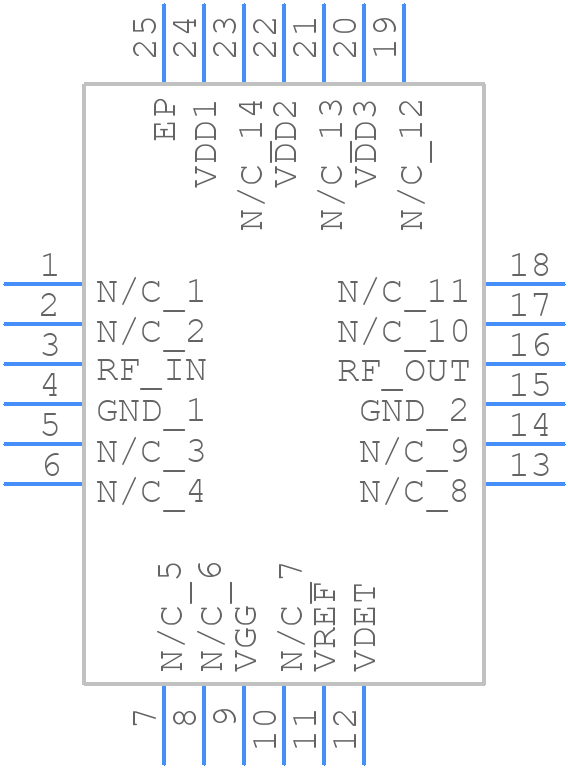

Symbol
HMC1082LP4ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC1082LP4ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HCP-24-3
click to zoom
3D Models
HMC1082LP4ETR - Analog Devices - 3D model - Quad Flat No-Lead - HCP-24-3
click to zoom

HMC1082LP4ETR Details

  • Manufacturer Part Number:

    HMC1082LP4ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-3

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    20 dB

  • Input Power-Max (CW):

    20 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    18000 MHz

  • Operating Frequency-Min:

    5500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Supply Current-Max:

    220 mA

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.31

HMC1082LP4ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC1082LP4ETR requires a single 3.3V or 5V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
  • The HMC1082LP4ETR can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • To minimize the noise figure, ensure the device is properly biased, use a low-noise power supply, and minimize the length of the input traces. Additionally, use a high-quality input matching network to optimize the input return loss.
  • The HMC1082LP4ETR can handle up to +10 dBm of input power, but the maximum input power depends on the specific application and the desired level of linearity.
