HMC1096LP3E - Analog Devices

Description: ANALOG DEVICES - HMC1096LP3E - GaAs pHEMT MMIC x2 Active Frequency Multiplier, 3.8-5.6 GHz Output

Download HMC1096LP3E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

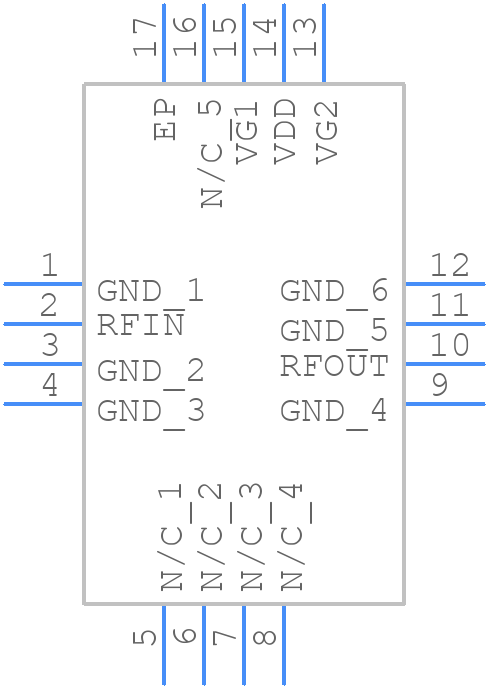

HMC1096LP3E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC1096LP3E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC1096LP3E
click to zoom
3D Models
HMC1096LP3E - Analog Devices - 3D model - Quad Flat No-Lead - HMC1096LP3E
click to zoom

HMC1096LP3E Details

  • Manufacturer Part Number:

    HMC1096LP3E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-3

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    5 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    5600 MHz

  • Operating Frequency-Min:

    3800 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    FREQUENCY DOUBLER

  • Terminal Finish:

    Matte Tin (Sn)

HMC1096LP3E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC1096LP3E requires a single 5V power supply. Ensure the voltage supply is clean and regulated, and decouple the power pins with 10uF and 100nF capacitors.
  • The maximum input power that the HMC1096LP3E can handle is +10dBm. Exceeding this limit may cause damage to the device.
  • Optimize the HMC1096LP3E for low noise figure and high gain by using a 50Ω input impedance, and ensuring the device is properly biased and terminated.
  • The recommended operating temperature range for the HMC1096LP3E is -40°C to +85°C. Operating outside this range may affect device performance and reliability.
