HMC1099PM5E - Analog Devices

Description: 10 W (40 dBm), 0.01 GHz to 1.1 GHz, GaN Power Amplifier

Download HMC1099PM5E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

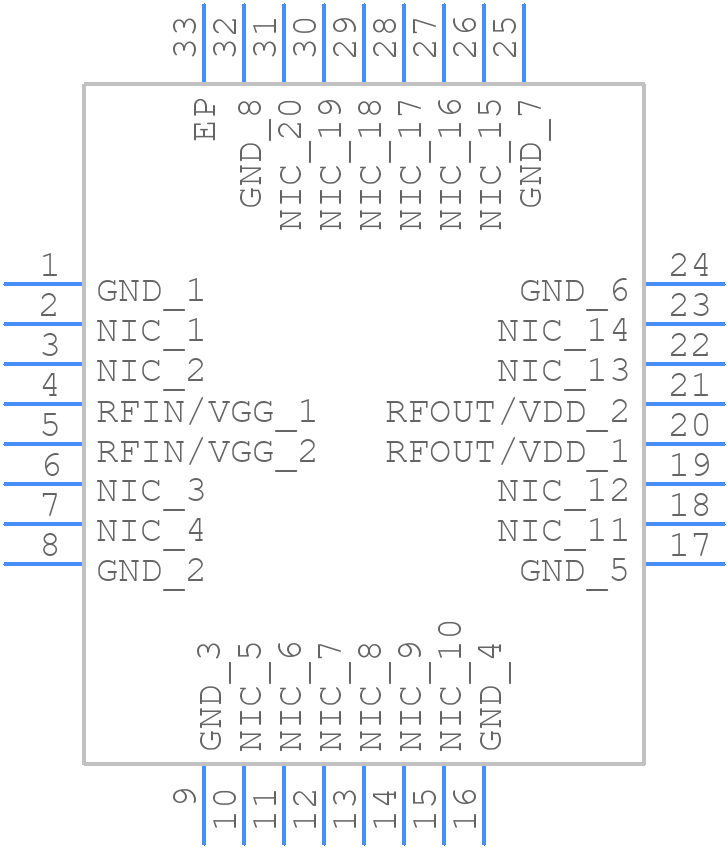

HMC1099PM5E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC1099PM5E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package, Premolded Cavity [LFCSP_CAV] 5 mm × 5 mm Body and 1.25 mm Package
click to zoom
3D Models
HMC1099PM5E - Analog Devices - 3D model - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package, Premolded Cavity [LFCSP_CAV] 5 mm × 5 mm Body and 1.25 mm Package
click to zoom

HMC1099PM5E Details

  • Manufacturer Part Number:

    HMC1099PM5E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CG-32-2

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2018-08-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    16.5 dB

  • Input Power-Max (CW):

    33 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Frequency-Max:

    1100 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Power Supplies:

    28 V

  • RF/Microwave Device Type:

    WIDE BAND HIGH POWER

  • Supply Current-Max:

    100 mA

  • Surface Mount:

    YES

  • Technology:

    GAN

  • VSWR-Max:

    6

HMC1099PM5E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC1099PM5E requires a single +5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The Vcc pin should be connected to a clean power source, and the Vee pin should be connected to a quiet ground.
  • The HMC1099PM5E can operate up to 20 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. Avoid blocking the airflow around the device, and keep the ambient temperature below 85°C.
  • Use a human body model (HBM) ESD protection of at least 2kV to prevent damage to the device. Consider using ESD protection diodes or TVS diodes on the input and output pins.
