HMC1099PM5ETR - Analog Devices

Description: 10 W (40 dBm), 0.01 GHz to 1.1 GHz, GaN Power Amplifier

Download HMC1099PM5ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

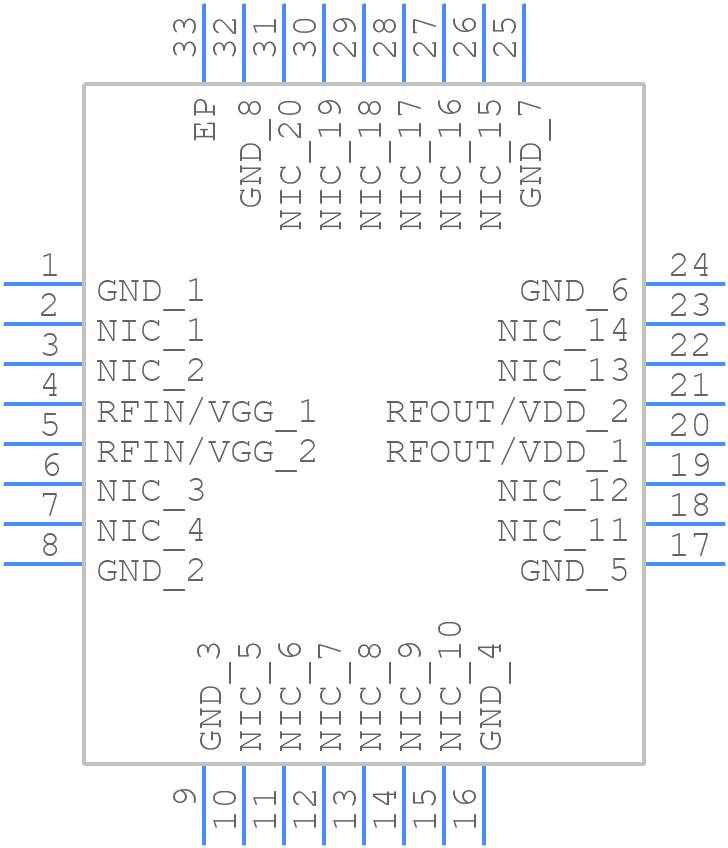

HMC1099PM5ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC1099PM5ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CG-32-2
click to zoom
3D Models
HMC1099PM5ETR - Analog Devices - 3D model - Quad Flat No-Lead - CG-32-2
click to zoom

HMC1099PM5ETR Details

  • Manufacturer Part Number:

    HMC1099PM5ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CG-32-2

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2018-08-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    16.5 dB

  • Input Power-Max (CW):

    33 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Frequency-Max:

    1100 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Power Supplies:

    28 V

  • RF/Microwave Device Type:

    WIDE BAND HIGH POWER

  • Supply Current-Max:

    100 mA

  • Surface Mount:

    YES

  • Technology:

    GAN

  • VSWR-Max:

    6

HMC1099PM5ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC1099PM5ETR requires a single 5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The recommended bias current is 100mA.
  • The HMC1099PM5ETR is rated for operation from -40°C to +85°C. However, the device may still function outside this range, but with reduced performance and reliability.
  • Use a logic analyzer or oscilloscope to verify the input and output signals. Check the power supply voltage and decoupling capacitors. Ensure the PCB layout is correct and the device is properly biased.
  • The HMC1099PM5ETR is not specifically designed for radiation-hardened applications. However, Analog Devices Inc. offers other products that are designed for radiation-hardened applications. Contact Analog Devices Inc. for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC1099PM5ETR Overview

Use the download button to access the HMC1099PM5ETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC10, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
