HMC1113LP5E - Analog Devices

Description: Up-Down Converters I/Q D/C Ku-band

Download HMC1113LP5E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

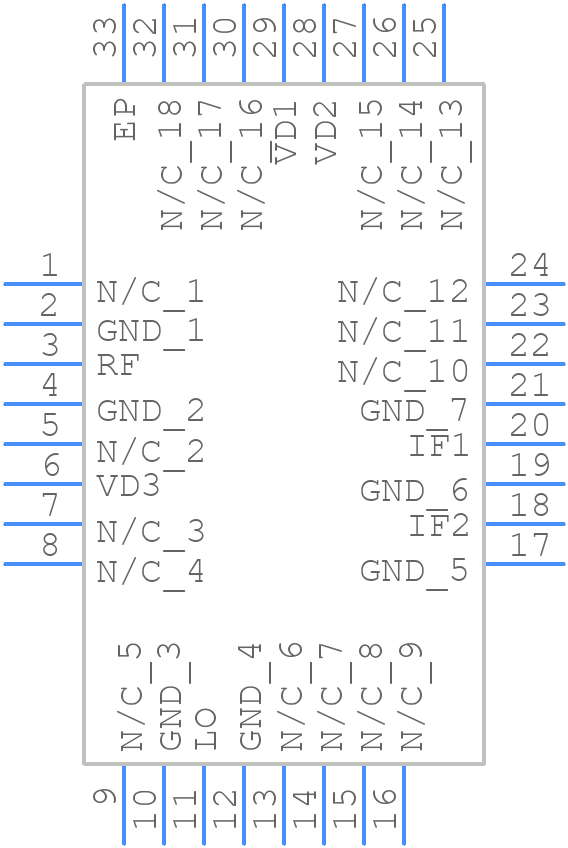

HMC1113LP5E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - H1113
click to zoom
3D Models
HMC1113LP5E - Analog Devices  - 3D model - Quad Flat No-Lead - H1113
click to zoom

HMC1113LP5E Details

  • Manufacturer Part Number:

    HMC1113LP5E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMT-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Down Conversion Gain-Min:

    9 dB

  • IF Frequency-Max:

    3500 MHz

  • Input Power-Min (CW):

    8 dBm

  • JESD-609 Code:

    e3

  • LO Tunable:

    NO

  • Mounting Feature:

    SURFACE MOUNT

  • Noise Figure-Max:

    2.5 dB

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Power Supplies:

    3,4 V

  • RF Input Frequency-Max:

    16000 MHz

  • RF Input Frequency-Min:

    10000 MHz

  • RF/Microwave Device Type:

    DOWN CONVERTER

  • Supply Current-Max:

    120 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)
