HMC1114LP5DE - Analog Devices

Description: RF Amplifier GaN Driver Ampllifier

Download HMC1114LP5DE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

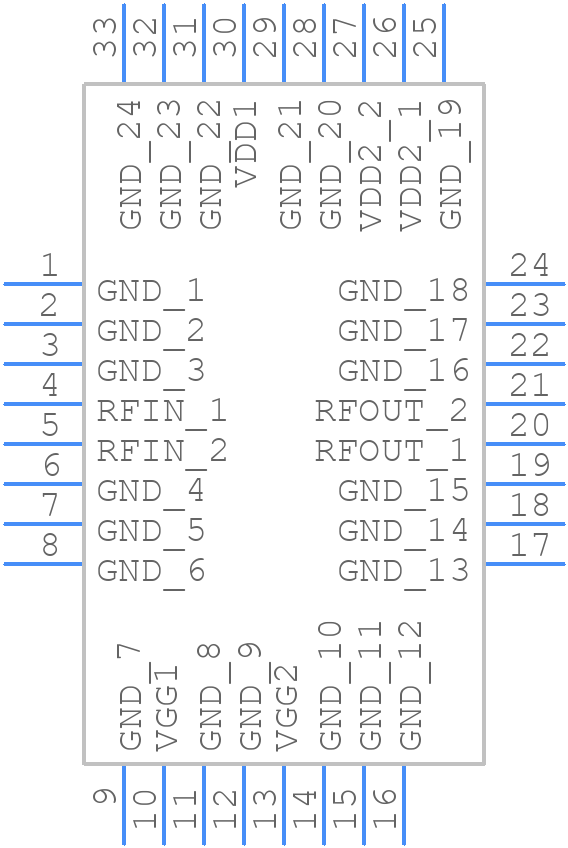

HMC1114LP5DE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC1114LP5DE - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CG-32-1_2022
click to zoom
3D Models
HMC1114LP5DE - Analog Devices - 3D model - Quad Flat No-Lead - CG-32-1_2022
click to zoom

HMC1114LP5DE Details

  • Manufacturer Part Number:

    HMC1114LP5DE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CG-32-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    29 dB

  • Input Power-Max (CW):

    30 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Frequency-Max:

    3800 MHz

  • Operating Frequency-Min:

    2700 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Power Supplies:

    28 V

  • RF/Microwave Device Type:

    WIDE BAND HIGH POWER

  • Supply Current-Max:

    150 mA

  • Surface Mount:

    YES

  • Technology:

    GAN

HMC1114LP5DE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Ensure the Vcc and Vee pins are properly decoupled with 0.1uF and 10uF capacitors, respectively. Also, ensure the bias voltage (Vbias) is set to the recommended 5V ± 0.5V.
  • The maximum power dissipation of the HMC1114LP5DE is 1.5W. Ensure proper heat sinking and thermal management to prevent overheating.
  • Check for proper PCB layout, decoupling, and biasing. Ensure the input and output impedances are matched, and the device is operated within the recommended frequency range.
  • Yes, the HMC1114LP5DE can be used in a push-pull configuration. However, ensure proper impedance matching and biasing to prevent oscillations and instability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC1114LP5DE Overview

Use the download button to access the HMC1114LP5DE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC11, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
