HMC1118LP3DE - Analog Devices

Description: Analog Devices HMC1118LP3DE, Analogue Switch Single SPDT, 3 → 3.6 V, 16-Pin LFCSP

Download HMC1118LP3DE Model

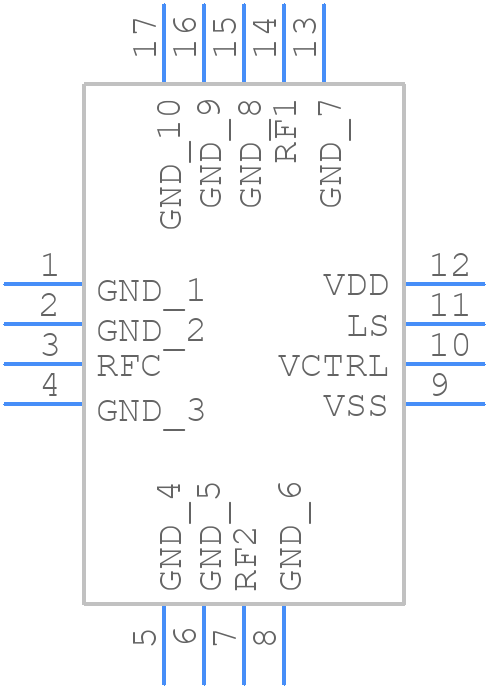

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC1118LP3DE - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC1118LP3DE-1
click to zoom
3D Models
HMC1118LP3DE - Analog Devices  - 3D model - Quad Flat No-Lead - HMC1118LP3DE-1
click to zoom

HMC1118LP3DE Details

  • Manufacturer Part Number:

    HMC1118LP3DE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-38

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • 1dB Compression Point:

    37 dBm

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    28 dBm

  • Insertion Loss-Max:

    2 dB

  • Isolation-Min:

    18 dB

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • On Time-Nom:

    2.7 µs

  • Operating Frequency-Max:

    13000 MHz

  • Operating Frequency-Min:

    0.009 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    +3.3/-2.5 V

  • RF/Microwave Device Type:

    SPDT

  • Supply Current-Max:

    0.2 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

HMC1118LP3DE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Ensure the VCC pin is connected to a stable voltage source, and the VEE pin is connected to a stable negative voltage source or ground. The recommended bias voltage is VCC = 5V and VEE = -5V.
  • The maximum power dissipation of the HMC1118LP3DE is 1.4W. Ensure proper heat sinking and thermal management to prevent overheating.
  • Use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the input/output lines to minimize EMI.
  • The recommended input impedance is 50 ohms, and the recommended output impedance is 50 ohms or lower to ensure maximum power transfer and minimal signal reflection.
