HMC1118LP3DETR - Analog Devices

Description: RF Switch ICs SPDT Main Ver. w/27dBm handling @ term

Download HMC1118LP3DETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

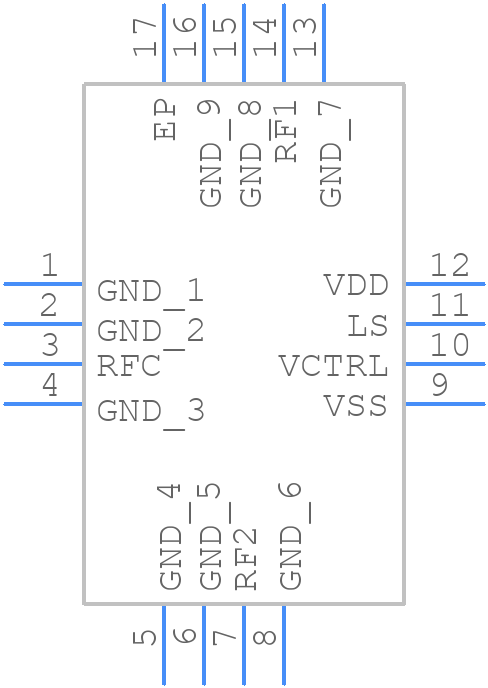

HMC1118LP3DETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC1118LP3DETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-38
click to zoom
3D Models
HMC1118LP3DETR - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-38
click to zoom

HMC1118LP3DETR Details

  • Manufacturer Part Number:

    HMC1118LP3DETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MO-220VEED-4, 16 PIN

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-38

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • 1dB Compression Point:

    37 dBm

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    28 dBm

  • Insertion Loss-Max:

    2 dB

  • Isolation-Min:

    18 dB

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • On Time-Nom:

    2.7 µs

  • Operating Frequency-Max:

    13000 MHz

  • Operating Frequency-Min:

    0.009 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    +3.3/-2.5 V

  • RF/Microwave Device Type:

    SPDT

  • Supply Current-Max:

    0.2 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

HMC1118LP3DETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC1118LP3DETR requires a single 3.3V or 5V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
  • The HMC1118LP3DETR can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • To minimize the noise figure, ensure the device is properly biased, use a low-noise power supply, and minimize the length of the input and output traces. Additionally, use a high-quality PCB material and ensure good thermal management.
  • No, the HMC1118LP3DETR is not designed for switching applications. It is a linear amplifier and should only be used in linear applications.
