Technical Content
Part Image

HMC1119LP4METR - Analog Devices

Description: Attenuators 7-bit 0.1-6Ghz DATT

Download HMC1119LP4METR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

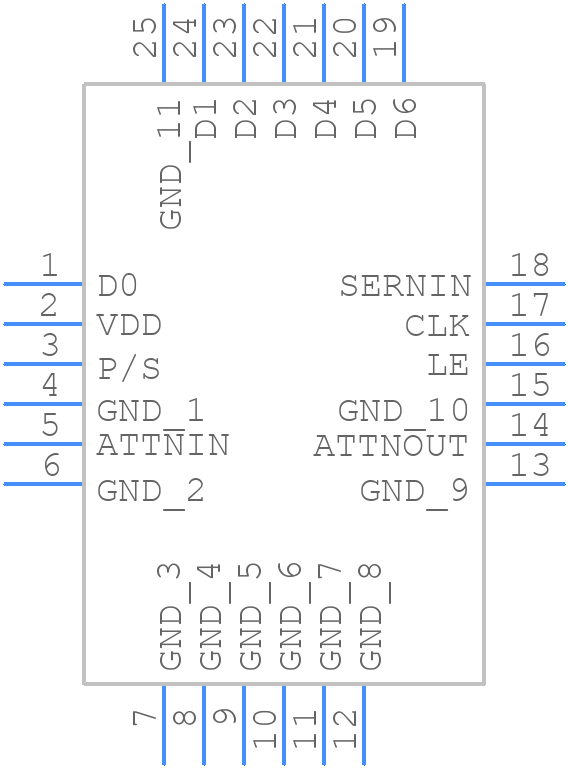

HMC1119LP4METR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC1119LP4METR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-16-
click to zoom
3D Models
HMC1119LP4METR - Analog Devices - 3D model - Quad Flat No-Lead - CP-24-16-
click to zoom

HMC1119LP4METR Details

  • Manufacturer Part Number:

    HMC1119LP4METR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-3

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-04-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

HMC1119LP4METR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Ensure the VCC pin is connected to a stable voltage source, and the VEE pin is connected to a stable negative voltage source or ground. The recommended bias voltage is 5V for VCC and -5V for VEE.
  • The maximum power dissipation of the HMC1119LP4METR is 1.4W. Ensure proper heat sinking and thermal management to prevent overheating.
  • Yes, the HMC1119LP4METR can be used in switching power supply applications. However, ensure proper filtering and decoupling to minimize noise and ripple.
  • Check the PCB layout for noise coupling, ensure proper decoupling and filtering, and verify the bias voltage and current. Also, check for any parasitic inductance or capacitance in the circuit.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC1119LP4METR Overview

Use the download button to access the HMC1119LP4METR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC11, or try a keyword search, such as Other Telecom ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
