HMC1120LP4E - Analog Devices

Description: ANALOG DEVICES - HMC1120LP4E - RF Detector, 0Hz to 3.9GHz, -60dBm to 8dBm Input Power, 3.15V to 3.45V Supply, QFN-24

Download HMC1120LP4E Model

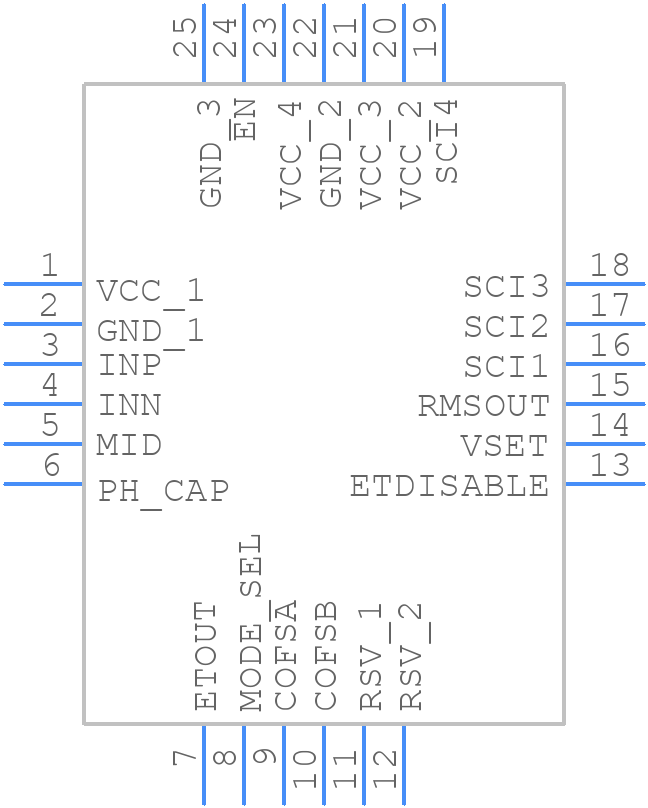

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC1120LP4E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HCP-24-2
click to zoom
3D Models
HMC1120LP4E - Analog Devices  - 3D model - Quad Flat No-Lead - HCP-24-2
click to zoom

HMC1120LP4E Details

  • Manufacturer Part Number:

    HMC1120LP4E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    13 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    3900 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    POSITIVE

  • Package Body Material:

    PLASTIC/EPOXY

  • Power Supplies:

    3.3 V

  • RF/Microwave Device Type:

    LINEAR DETECTOR

  • Supply Current-Max:

    100 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

HMC1120LP4E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC1120LP4E requires a single 5V power supply. Ensure the power supply is well-regulated and decoupled with 10uF and 100nF capacitors. The Vcc pin should be connected to a 5V power supply, and the Vee pin should be connected to ground.
  • The HMC1120LP4E can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • To minimize the noise figure, ensure the input signal is properly matched to the device, use a low-noise power supply, and keep the device away from noise sources. Additionally, use a high-quality PCB material and ensure good thermal management.
  • The recommended input impedance is 50 ohms, and the recommended output impedance is also 50 ohms. Ensure the input and output are properly matched to minimize reflections and ensure optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC1120LP4E Overview

Use the download button to access the HMC1120LP4E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC11, or try a keyword search, such as RF/Microwave Detectors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
