HMC1121LP6GE - Analog Devices

Description: RF Amplifier Amplifier, Power, 5.5-8.5GHz, 5W

Download HMC1121LP6GE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

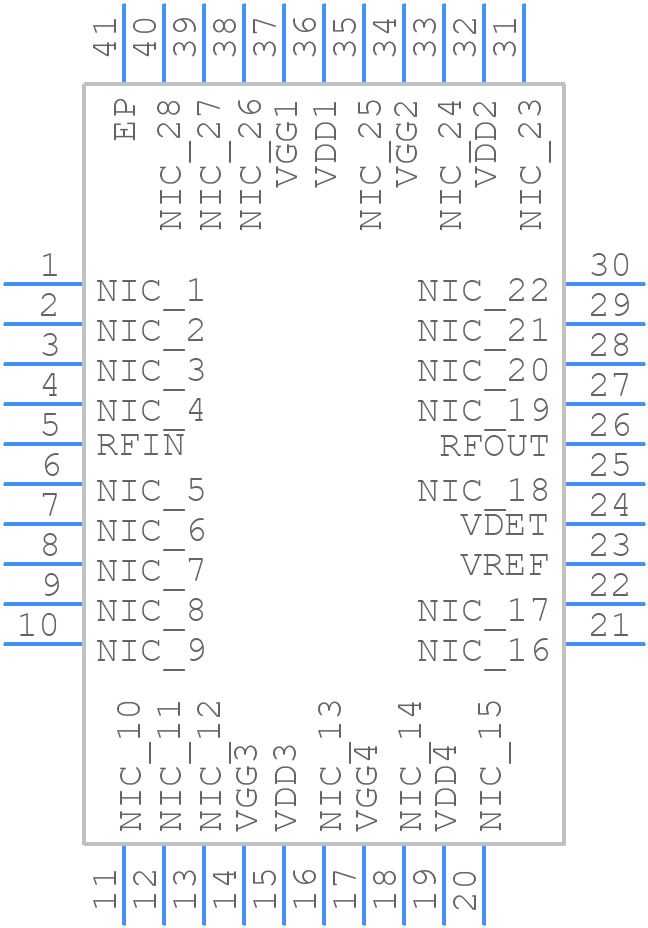

Symbol
HMC1121LP6GE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC1121LP6GE - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-Lead Lead Frame Chip Scale Package [LFCSP] 6 mm × 6 mm Body and 0.85 mm Package Height
click to zoom
3D Models
HMC1121LP6GE - Analog Devices - 3D model - Quad Flat No-Lead - 40-Lead Lead Frame Chip Scale Package [LFCSP] 6 mm × 6 mm Body and 0.85 mm Package Height
click to zoom

HMC1121LP6GE Details

  • Manufacturer Part Number:

    HMC1121LP6GE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MO-220VJJD-5, 40 PIN

  • Pin Count:

    40

  • Manufacturer Package Code:

    HCP-40-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    3A001.B.2.B

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    25 dB

  • Input Power-Max (CW):

    24 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    8500 MHz

  • Operating Frequency-Min:

    5500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND HIGH POWER

  • Terminal Finish:

    Matte Tin (Sn)

HMC1121LP6GE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC1121LP6GE requires a single 5V power supply. Ensure the voltage supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
  • The HMC1121LP6GE can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • To minimize the noise figure, ensure the device is properly biased, use a high-quality PCB layout, and minimize the length of the input traces. Additionally, use a low-noise voltage regulator and decouple the power supply lines.
  • Yes, the HMC1121LP6GE can be used in a differential configuration to improve common-mode rejection and reduce noise. However, this requires careful attention to PCB layout and component selection.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC1121LP6GE Overview

Use the download button to access the HMC1121LP6GE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC11, or try a keyword search, such as RF/Microwave Amplifiers
