HMC1160LP5ETR footprint, schematic symbol and 3D model by Analog Devices

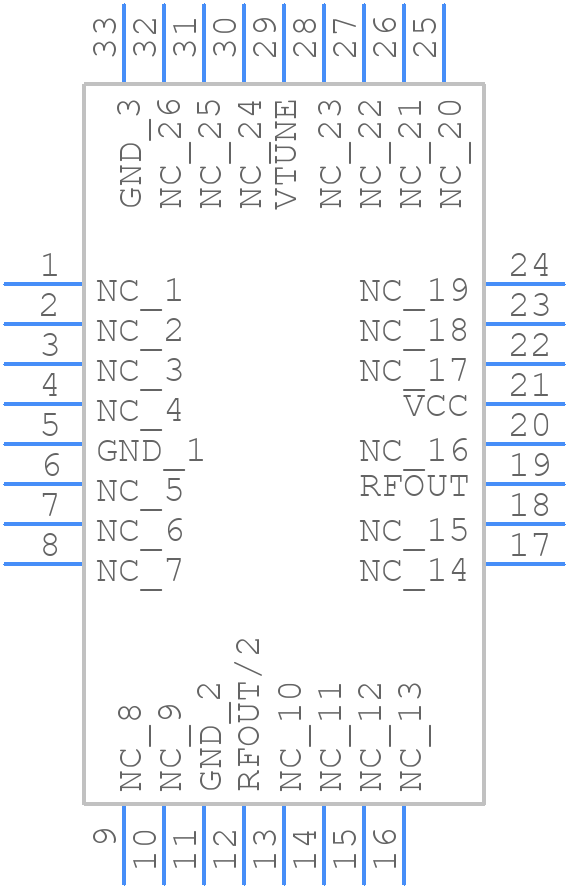

Symbol

click to zoom

PCB Footprints

HMC1160LP5ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HMC1160LP5ETR
Part Number HMC1160LP5ETR
Manufacturer Analog Devices
Pin Count 33
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - LFCSP
Released Date Aug 26, 2026
Last Modified Date Aug 26, 2026 3:47 AM UTC
Pinout / Pin List Click Here (Member Only)

HMC1160LP5ETR Details

Manufacturer Part Number:
HMC1160LP5ETR
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
LFCSP-32
Pin Count:
32
Manufacturer Package Code:
HCP-32-1
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
9
Additional Feature:
TR
Control Voltage-Max:
13 V
Control Voltage-Min:
2 V
JESD-609 Code:
e3
Modulation Sensitivity:
250 MHz/V
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
32
Offset Frequency:
10 kHz
Operating Frequency-Max:
9300 MHz
Operating Frequency-Min:
8450 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
VOLTAGE CONTROLLED OSCILLATOR
Output Power:
9 dBm
Phase Noise:
-90 dBc/Hz
Physical Dimension:
5.1mm x 5.1mm x 1.0mm
Supply Current-Max:
325 mA
Supply Voltage-Max:
5.25 V
Supply Voltage-Min:
4.75 V
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn)

HMC1160LP5ETR Frequently Asked Questions (FAQs)

A good PCB layout for the HMC1160LP5ETR involves keeping the signal paths short, using a solid ground plane, and minimizing the distance between the device and the antenna. It's also recommended to use a 4-layer PCB with a dedicated ground plane and to avoid routing signals under the device.
To optimize the HMC1160LP5ETR for low power consumption, use the lowest possible supply voltage, reduce the operating frequency, and use the device's power-down mode when not in use. Additionally, optimize the PCB layout to minimize power consumption and use a low-power mode for the device's internal oscillator.
The maximum operating temperature range for the HMC1160LP5ETR is -40°C to +85°C. However, it's recommended to operate the device within a temperature range of -20°C to +70°C for optimal performance and reliability.
To troubleshoot common issues with the HMC1160LP5ETR, check the PCB layout for any errors or omissions, ensure that the device is properly powered and biased, and verify that the antenna is properly connected and matched. Also, check for any electromagnetic interference (EMI) or radio-frequency interference (RFI) in the system.
Yes, the HMC1160LP5ETR can be used in a non-50 ohm system, but it may require additional impedance matching components to ensure optimal performance. It's recommended to consult with an RF engineer or use simulation tools to determine the required impedance matching components.
