HMC1161LP5E - Analog Devices

Description: VCO Oscillators VCO GaAs RF/2 8.71-9.55GHz

Download HMC1161LP5E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

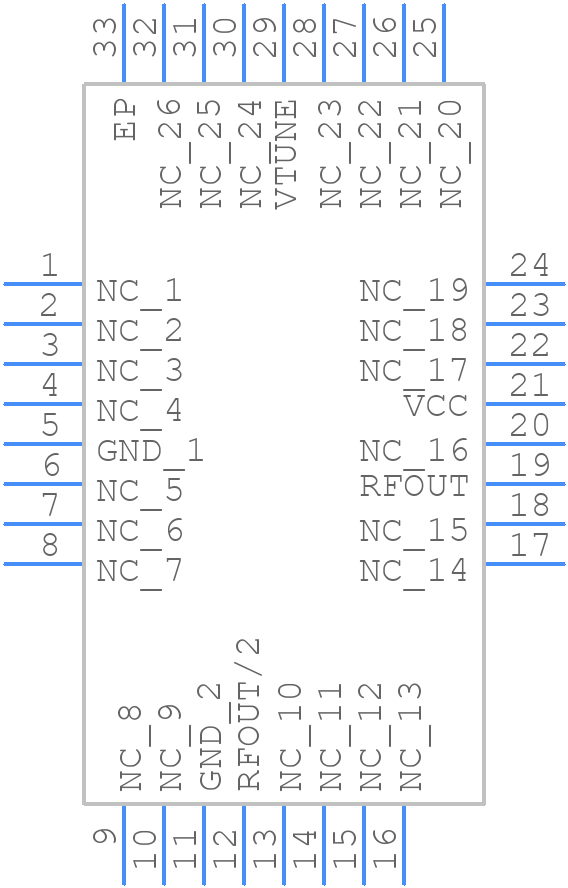

HMC1161LP5E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC1161LP5E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HCP-32-1
click to zoom
3D Models
HMC1161LP5E - Analog Devices - 3D model - Quad Flat No-Lead - HCP-32-1
click to zoom

HMC1161LP5E Details

  • Manufacturer Part Number:

    HMC1161LP5E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP, 32 PIN

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    HALF O/P FREQUENCY ALSO AVAILABLE

  • Control Voltage-Max:

    13 V

  • Control Voltage-Min:

    2 V

  • Modulation Sensitivity:

    250 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Offset Frequency:

    10 kHz

  • Operating Frequency-Max:

    9550 MHz

  • Operating Frequency-Min:

    8710 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    11 dBm

  • Phase Noise:

    -90 dBc/Hz

  • Physical Dimension:

    5.1mm x 5.1mm x 1.0mm

  • Supply Current-Max:

    300 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

HMC1161LP5E Frequently Asked Questions (FAQs)

  • A good PCB layout for the HMC1161LP5E involves keeping the signal paths short, using a solid ground plane, and minimizing the distance between the device and the antenna. It's also recommended to use a 50-ohm microstrip transmission line to connect the device to the antenna.
  • To optimize the biasing of the HMC1161LP5E, it's recommended to use a voltage regulator to provide a stable voltage supply, and to adjust the bias voltage (VDD) to the recommended value of 5V. Additionally, the bias current (IDD) should be set to the recommended value of 30mA.
  • The HMC1161LP5E can handle a maximum input power of +20 dBm (100mW) without damage. However, the recommended maximum input power is +15 dBm (30mW) to ensure optimal performance and reliability.
  • Common issues with the HMC1161LP5E can often be troubleshooted by checking the PCB layout, ensuring proper biasing, and verifying that the input signal is within the recommended range. Additionally, checking for signs of damage or overheating, and ensuring that the device is properly soldered and connected can also help to identify and resolve issues.
  • The recommended operating temperature range for the HMC1161LP5E is -40°C to +85°C. Operating the device outside of this range can affect its performance and reliability.
