HMC1162LP5E - Analog Devices

Description: ANALOG DEVICES - HMC1162LP5E - VCO W/HALF FREQ O/P, 9.25-10.1GHZ, QFN32

Download HMC1162LP5E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

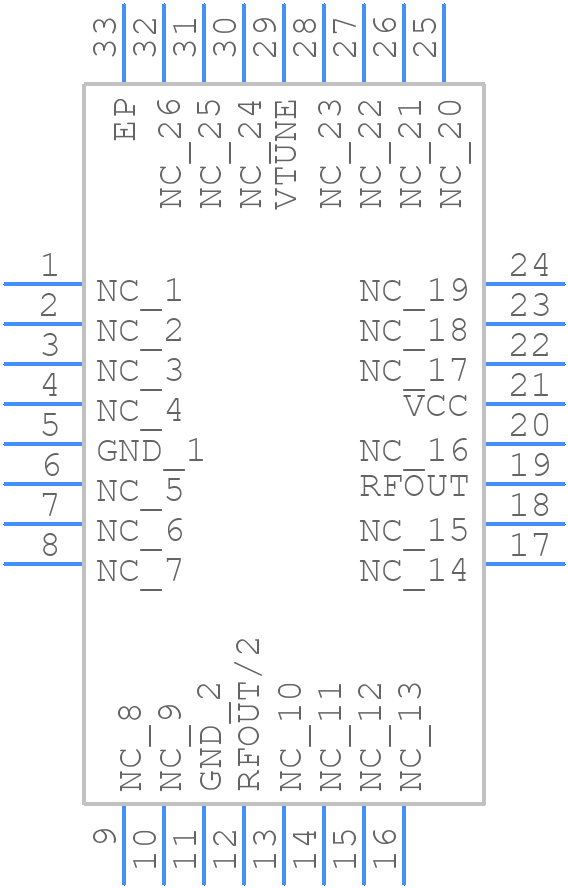

HMC1162LP5E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC1162LP5E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HCP-32-1
click to zoom
3D Models
HMC1162LP5E - Analog Devices - 3D model - Quad Flat No-Lead - HCP-32-1
click to zoom

HMC1162LP5E Details

  • Manufacturer Part Number:

    HMC1162LP5E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    FREQUENCY 4.625 GHZ TO 5.050GHZ AVAILABLE

  • Control Voltage-Max:

    13 V

  • Control Voltage-Min:

    2 V

  • JESD-609 Code:

    e3

  • Modulation Sensitivity:

    350 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Offset Frequency:

    10 kHz

  • Operating Frequency-Max:

    10100 MHz

  • Operating Frequency-Min:

    9250 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    11 dBm

  • Phase Noise:

    -86 dBc/Hz

  • Physical Dimension:

    5.1mm x 5.1mm x 1.0mm

  • Supply Current-Max:

    310 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)
