HMC1162LP5ETR footprint, schematic symbol and 3D model by Analog Devices

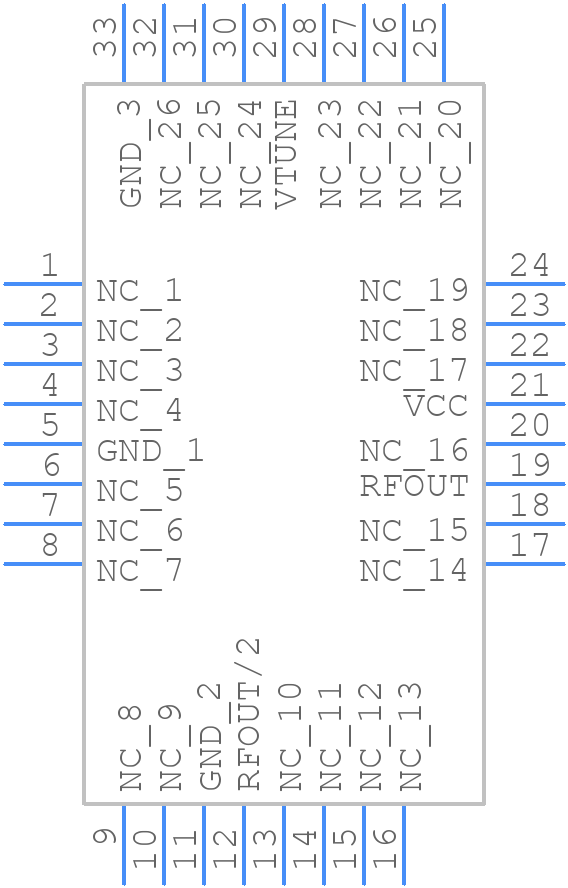

Symbol

click to zoom

PCB Footprints

HMC1162LP5ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HMC1162LP5ETR
Part Number HMC1162LP5ETR
Manufacturer Analog Devices
Pin Count 33
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - LFCSP-2
Released Date Aug 26, 2026
Last Modified Date Aug 26, 2026 3:48 AM UTC
Pinout / Pin List Click Here (Member Only)

HMC1162LP5ETR Details

Manufacturer Part Number:
HMC1162LP5ETR
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Pin Count:
32
Manufacturer Package Code:
HCP-32-1
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
9
Additional Feature:
FREQUENCY 4.625 GHZ TO 5.050GHZ AVAILABLE; TR
Control Voltage-Max:
13 V
Control Voltage-Min:
2 V
Modulation Sensitivity:
350 MHz/V
Mounting Feature:
SURFACE MOUNT
Offset Frequency:
10 kHz
Operating Frequency-Max:
10100 MHz
Operating Frequency-Min:
9250 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
VOLTAGE CONTROLLED OSCILLATOR
Output Power:
11 dBm
Phase Noise:
-86 dBc/Hz
Physical Dimension:
5.1mm x 5.1mm x 1.0mm
Supply Current-Max:
310 mA
Supply Voltage-Max:
5.25 V
Supply Voltage-Min:
4.75 V
Supply Voltage-Nom:
5 V
Surface Mount:
YES

HMC1162LP5ETR Frequently Asked Questions (FAQs)

A good PCB layout for the HMC1162LP5ETR involves keeping the signal paths short, using a solid ground plane, and minimizing the distance between the device and the antenna. It's also recommended to use a 50-ohm microstrip transmission line to connect the device to the antenna. Analog Devices provides a recommended PCB layout in their application notes and evaluation boards.
To optimize the HMC1162LP5ETR for low power consumption, it's recommended to use the lowest possible supply voltage, reduce the operating frequency, and use the device's power-down mode when not in use. Additionally, using a low-power mode or reducing the transmit power can also help reduce power consumption.
The HMC1162LP5ETR has an operating temperature range of -40°C to +85°C. However, it's recommended to operate the device within a temperature range of -20°C to +70°C for optimal performance and reliability.
To troubleshoot common issues with the HMC1162LP5ETR, it's recommended to check the device's power supply, clock signal, and antenna connection. Ensure that the device is properly configured and that the transmit and receive paths are not damaged. Additionally, using a spectrum analyzer or a logic analyzer can help identify issues with the device's transmission or reception.
While the HMC1162LP5ETR is designed for 50-ohm systems, it can be used in non-50-ohm systems with some modifications. However, this may require additional impedance matching components and may affect the device's performance. It's recommended to consult with Analog Devices' application engineers or use their simulation tools to determine the best approach for a non-50-ohm system.
