HMC1163LP5ETR - Analog Devices

Description: 9.65 GHz to 10.41 GHz MMIC VCO with Half Frequency Output

Download HMC1163LP5ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

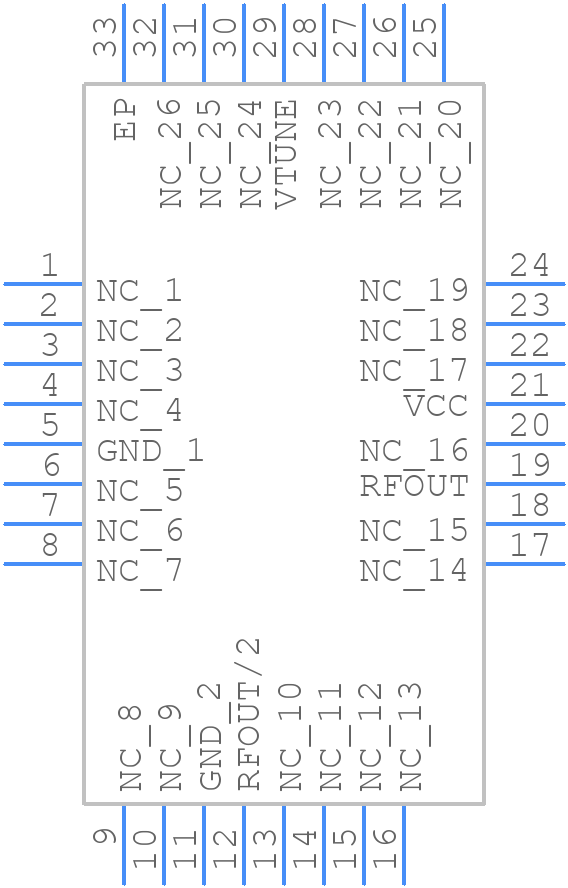

HMC1163LP5ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC1163LP5ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HCP-32-1
click to zoom
3D Models
HMC1163LP5ETR - Analog Devices - 3D model - Quad Flat No-Lead - HCP-32-1
click to zoom

HMC1163LP5ETR Details

  • Manufacturer Part Number:

    HMC1163LP5ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Control Voltage-Max:

    13 V

  • Control Voltage-Min:

    2 V

  • Modulation Sensitivity:

    300 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Offset Frequency:

    10 kHz

  • Operating Frequency-Max:

    10410 MHz

  • Operating Frequency-Min:

    9650 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    11 dBm

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Phase Noise:

    -87 dBc/Hz

  • Physical Dimension:

    5.0mm X 5.0mm X 1.0mm

  • Supply Current-Max:

    250 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

HMC1163LP5ETR Frequently Asked Questions (FAQs)

  • A good PCB layout for the HMC1163LP5ETR involves keeping the signal paths short, using a solid ground plane, and minimizing the distance between the device and the antenna. It's also recommended to use a 4-layer PCB with a dedicated layer for the RF signal, a layer for the ground plane, and two layers for the power supply and control signals.
  • To ensure proper biasing, make sure to follow the recommended voltage and current settings outlined in the datasheet. The device requires a single 5V supply, and the VCC pin should be decoupled with a 10nF capacitor to ground. Additionally, the EN pin should be tied to VCC or a digital signal to enable the device.
  • The HMC1163LP5ETR can handle up to 30dBm of input power, but it's recommended to operate the device at a maximum of 20dBm to ensure reliable performance and prevent damage to the device.
  • To troubleshoot issues with the HMC1163LP5ETR, start by verifying the PCB layout and ensuring that the device is properly biased. Check for any signs of damage or overheating, and verify that the input and output signals are within the recommended specifications. Use a spectrum analyzer to measure the gain and noise floor, and compare the results to the datasheet specifications.
  • Yes, the HMC1163LP5ETR can be used in a switching application, but it's essential to ensure that the device is properly biased and that the switching frequency is within the recommended specifications. The device has a typical switching time of 10ns, making it suitable for high-speed switching applications.
