HMC1164LP5E - Analog Devices

Description: MMIC VCO GaAs RF/2 10.38-11.30GHz MMIC VCO GaAs RF/2 10.38-11.30GHz

Download HMC1164LP5E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

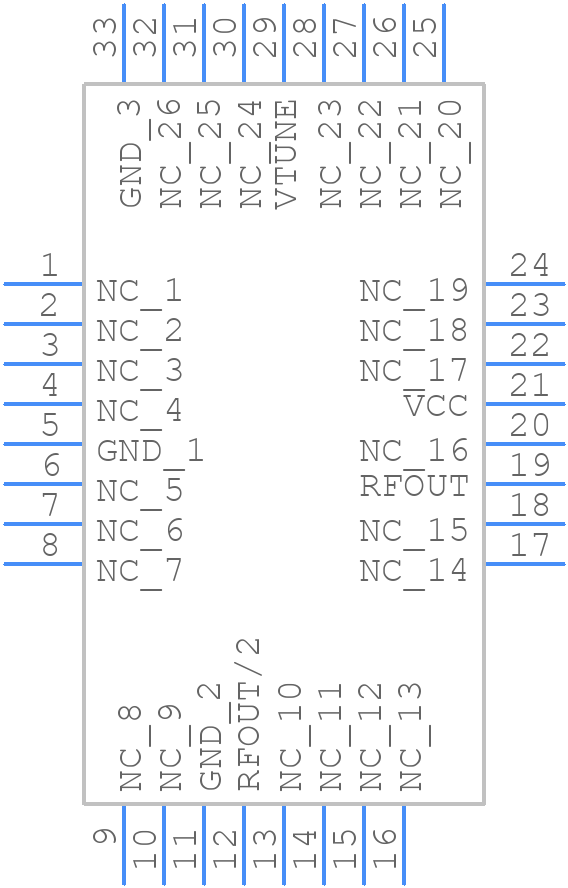

Symbol
HMC1164LP5E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC1164LP5E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC1164LP5E-
click to zoom
3D Models
HMC1164LP5E - Analog Devices - 3D model - Quad Flat No-Lead - HMC1164LP5E-
click to zoom

HMC1164LP5E Details

  • Manufacturer Part Number:

    HMC1164LP5E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP, 32 PIN

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    HALF O/P FREQUENCY ALSO AVAILABLE

  • Control Voltage-Max:

    13 V

  • Control Voltage-Min:

    2 V

  • Modulation Sensitivity:

    300 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Offset Frequency:

    10 kHz

  • Operating Frequency-Max:

    11300 MHz

  • Operating Frequency-Min:

    10380 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    8 dBm

  • Phase Noise:

    -86 dBc/Hz

  • Physical Dimension:

    5.1mm x 5.1mm x 1.0mm

  • Supply Current-Max:

    290 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

HMC1164LP5E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Ensure the Vcc and Vee pins are properly decoupled with 100nF capacitors, and the Iset pin is connected to a 10kΩ resistor to set the output current.
  • The HMC1164LP5E can operate from -40°C to +85°C, but the device's performance may degrade at extreme temperatures.
  • Yes, but ensure the device is properly bypassed and decoupled to minimize noise and ripple. Additionally, consider the device's power handling capabilities and thermal management.
  • Check the PCB layout for noise coupling, ensure proper decoupling and bypassing, and verify the device is properly biased. Also, check for thermal issues and ensure the device is within its recommended operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC1164LP5E Overview

Use the download button to access the HMC1164LP5E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC11, or try a keyword search, such as Voltage Controlled Oscillators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
