HMC1164LP5ETR - Analog Devices

Description: 10.38 GHz to 11.30 GHz MMIC VCO with Half Frequency Output,5.19 GHz to 5.65 GHz,5.5 V dc,0 V to 15 V,−65°C to +150°C

Download HMC1164LP5ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

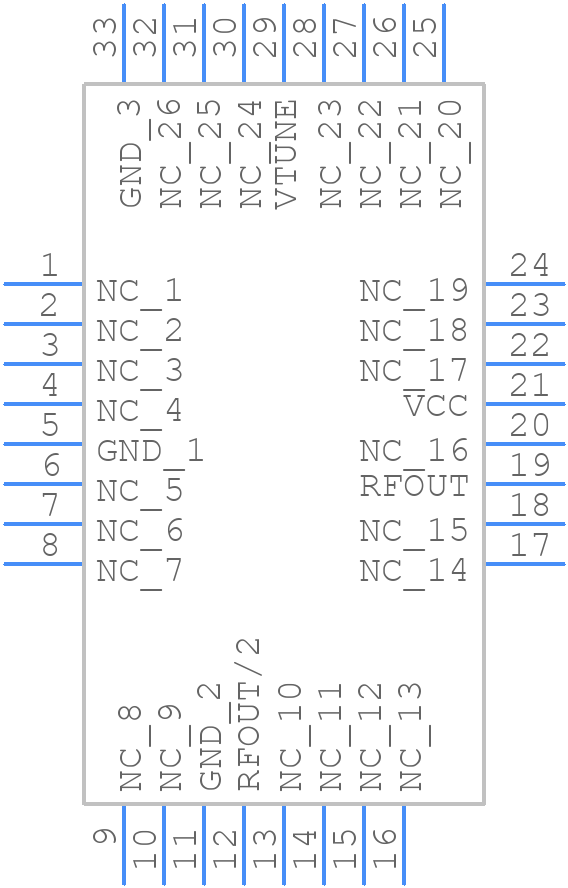

Symbol
HMC1164LP5ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC1164LP5ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP-3
click to zoom

HMC1164LP5ETR Details

  • Manufacturer Part Number:

    HMC1164LP5ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP, 32 PIN

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    TR, 7 INCH; HALF O/P FREQUENCY ALSO AVAILABLE

  • Control Voltage-Max:

    13 V

  • Control Voltage-Min:

    2 V

  • JESD-609 Code:

    e3

  • Modulation Sensitivity:

    300 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Offset Frequency:

    10 kHz

  • Operating Frequency-Max:

    11300 MHz

  • Operating Frequency-Min:

    10380 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    8 dBm

  • Phase Noise:

    -86 dBc/Hz

  • Physical Dimension:

    5.1mm x 5.1mm x 1.0mm

  • Supply Current-Max:

    290 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

HMC1164LP5ETR Frequently Asked Questions (FAQs)

  • A good PCB layout for the HMC1164LP5ETR involves keeping the signal paths short, using a solid ground plane, and minimizing the distance between the device and the antenna. It's also recommended to use a 50-ohm microstrip transmission line to connect the device to the antenna. Analog Devices provides a recommended PCB layout in their application notes and evaluation board documentation.
  • The HMC1164LP5ETR requires a bias voltage of 3.3V to 5V on the VCC pin, and a bias current of 20mA to 40mA. It's also important to ensure that the bias voltage is well-regulated and has low noise. A good quality voltage regulator and decoupling capacitors can help achieve this. Additionally, the device has an enable pin (EN) that can be used to turn the device on and off.
  • The HMC1164LP5ETR is designed to handle input power levels up to +20 dBm. However, the device can be damaged if the input power exceeds this level. It's recommended to use an attenuator or a limiter to prevent excessive power from reaching the device.
  • Troubleshooting issues with the HMC1164LP5ETR typically involves checking the power supply, signal integrity, and PCB layout. Use an oscilloscope to check the signal waveforms and ensure that they are within the specified limits. Also, check the device's temperature and ensure that it is within the recommended operating range. Analog Devices provides a troubleshooting guide in their application notes and documentation.
  • While the HMC1164LP5ETR is designed for 50-ohm systems, it can be used in non-50-ohm systems with some modifications. However, this may require additional impedance matching components and may affect the device's performance. It's recommended to consult with Analog Devices' application engineers or use their simulation tools to determine the best approach for a non-50-ohm system.
