HMC1165LP5E footprint, schematic symbol and 3D model by Analog Devices

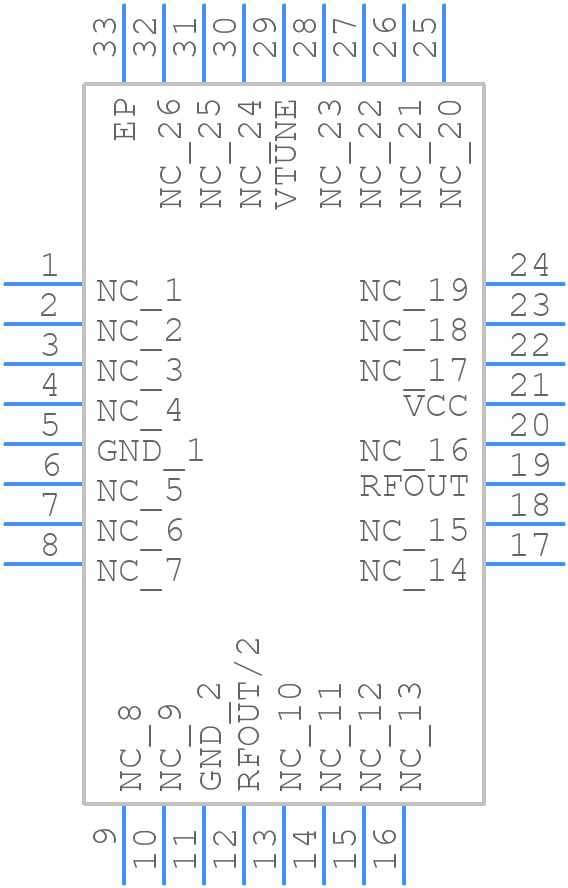

Symbol

click to zoom

PCB Footprints

HMC1165LP5E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HCP-32-1

click to zoom

3D Models

HMC1165LP5E - Analog Devices - 3D model - Quad Flat No-Lead - HCP-32-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HMC1165LP5E
Part Number HMC1165LP5E
Manufacturer Analog Devices
Pin Count 33
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - HCP-32-1
Released Date Mar 10, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

HMC1165LP5E Details

Manufacturer Part Number:
HMC1165LP5E
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
LFCSP, 32 PIN
Pin Count:
32
Manufacturer Package Code:
HCP-32-1
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
10
Additional Feature:
HALF O/P FREQUENCY ALSO AVAILABLE
Control Voltage-Max:
13 V
Control Voltage-Min:
2 V
Modulation Sensitivity:
310 MHz/V
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
32
Offset Frequency:
10 kHz
Operating Frequency-Max:
11620 MHz
Operating Frequency-Min:
11070 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
VOLTAGE CONTROLLED OSCILLATOR
Output Power:
8 dBm
Phase Noise:
-88 dBc/Hz
Physical Dimension:
5.1mm x 5.1mm x 1.0mm
Supply Current-Max:
280 mA
Supply Voltage-Max:
5.25 V
Supply Voltage-Min:
4.75 V
Supply Voltage-Nom:
5 V
Surface Mount:
YES

HMC1165LP5E Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
Ensure the Vcc and Vee pins are properly decoupled with 100nF capacitors, and the Iset pin is connected to a 10kΩ resistor to set the output current. Also, ensure the input voltage is within the recommended range of 3.3V to 5.5V.
The maximum power dissipation of the HMC1165LP5E is 1.4W. Ensure proper heat sinking and thermal management to prevent overheating.
Check the input voltage, output voltage, and output current. Verify the PCB layout and component placement. Use an oscilloscope to check for noise and oscillations. Consult the datasheet and application notes for troubleshooting guides.
The HMC1165LP5E is rated for industrial temperature range (-40°C to 85°C). For high-reliability or high-temperature applications, consider using a more ruggedized version of the device or consulting with Analog Devices' application engineers.

Trust Checks

System Verified

HMC1165LP5E Overview

Use the download button to access the HMC1165LP5E schematic symbol, PCB footprint, and 3D model.
