HMC1166LP5E - Analog Devices

Description: VCO Oscillators VCO GaAs RF/2 11.42-12.62GHz

Download HMC1166LP5E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

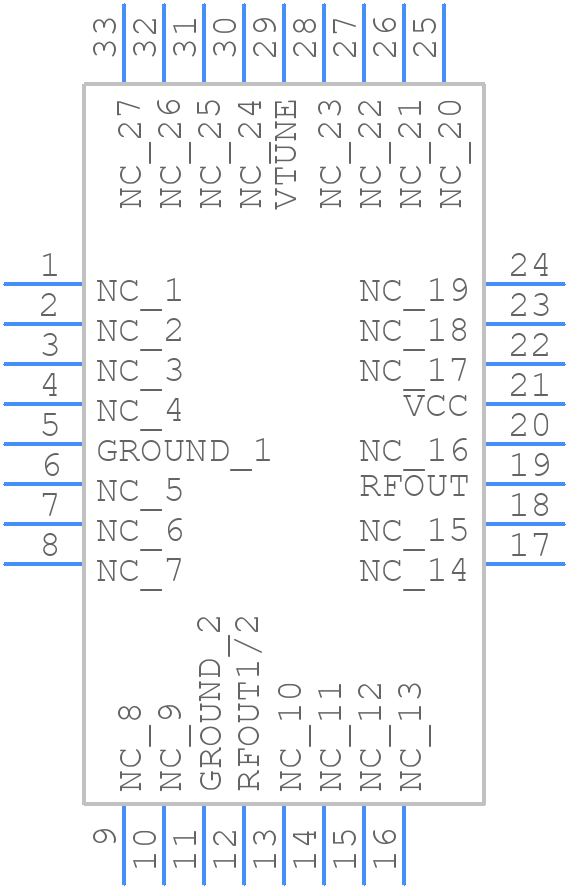

Symbol
HMC1166LP5E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC1166LP5E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC1166
click to zoom
3D Models
HMC1166LP5E - Analog Devices - 3D model - Quad Flat No-Lead - HMC1166
click to zoom

HMC1166LP5E Details

  • Manufacturer Part Number:

    HMC1166LP5E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Control Voltage-Max:

    13 V

  • Control Voltage-Min:

    2 V

  • Modulation Sensitivity:

    325 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Offset Frequency:

    -89 kHz

  • Operating Frequency-Max:

    12620 MHz

  • Operating Frequency-Min:

    11410 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    11 dBm

  • Phase Noise:

    10 dBc/Hz

  • Physical Dimension:

    5.1mm x 5.1mm x 1.0mm

  • Supply Current-Max:

    270 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

HMC1166LP5E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Ensure the Vcc and Vee pins are properly decoupled with 100nF capacitors, and the Iset pin is connected to a 10kΩ resistor to set the output current.
  • The HMC1166LP5E can operate from -40°C to 85°C, but the device's performance may degrade at extreme temperatures.
  • Yes, but ensure the device is properly bypassed and decoupled to minimize noise and ripple. Additionally, consider the device's power handling capabilities and thermal management.
  • Check the PCB layout, decoupling, and biasing. Ensure the device is properly terminated and the output is properly loaded. Use an oscilloscope to analyze the output waveform and identify any issues.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC1166LP5E Overview

Use the download button to access the HMC1166LP5E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC11, or try a keyword search, such as Voltage Controlled Oscillators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
