HMC1167LP5E - Analog Devices

Description: ANALOG DEVICES - HMC1167LP5E - VCO W/ HALF FREQ O/P, 13.33GHZ, LFCSP-32

Download HMC1167LP5E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

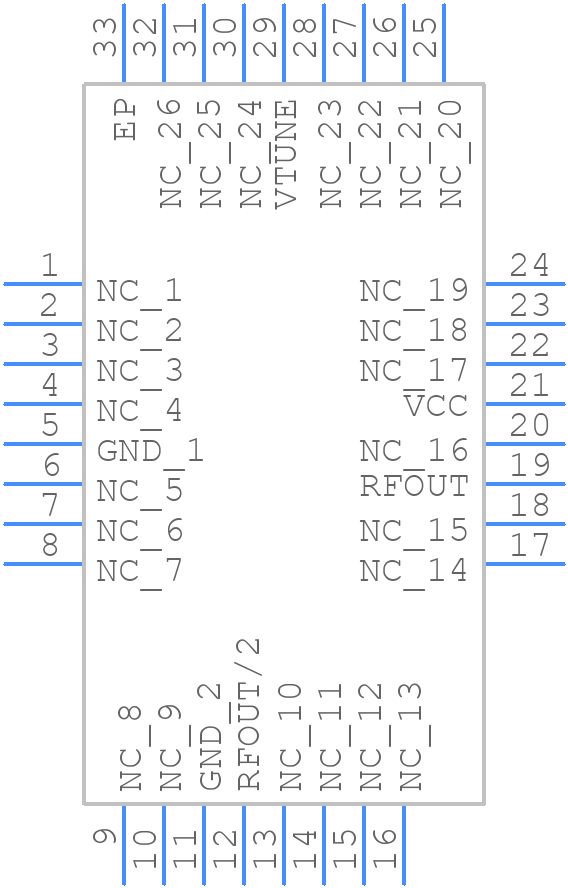

HMC1167LP5E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC1167LP5E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HCP-32-3
click to zoom
3D Models
HMC1167LP5E - Analog Devices - 3D model - Quad Flat No-Lead - HCP-32-3
click to zoom

HMC1167LP5E Details

  • Manufacturer Part Number:

    HMC1167LP5E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP, 32 PIN

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-3

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Control Voltage-Max:

    13 V

  • Control Voltage-Min:

    2 V

  • Modulation Sensitivity:

    350 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Offset Frequency:

    10 kHz

  • Operating Frequency-Max:

    13330 MHz

  • Operating Frequency-Min:

    12170 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    0.0112 dBm

  • Phase Noise:

    -86 dBc/Hz

  • Physical Dimension:

    5.1mm x 5.1mm x 1.0mm

  • Supply Current-Max:

    250 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

HMC1167LP5E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Ensure the Vcc and Vee pins are properly decoupled with 100nF capacitors, and the Iset pin is connected to a 10kΩ resistor to set the output current. Also, ensure the input voltage is within the recommended range of 3.3V to 5.5V.
  • The maximum power dissipation of the HMC1167LP5E is 1.4W. Ensure proper heat sinking and thermal management to prevent overheating.
  • Check the input voltage, output voltage, and current consumption. Verify the PCB layout and component placement. Use an oscilloscope to check for noise and oscillations. Consult the datasheet and application notes for troubleshooting guides.
  • The HMC1167LP5E is a commercial-grade device and may not meet the requirements for high-reliability or aerospace applications. Consult with Analog Devices Inc. for availability of radiation-hardened or high-reliability versions of the device.
