HMC1168LP5E - Analog Devices

Description: VCO Oscillators VCO, GaAs, RF/2, 12.48-13.72GHz

Download HMC1168LP5E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

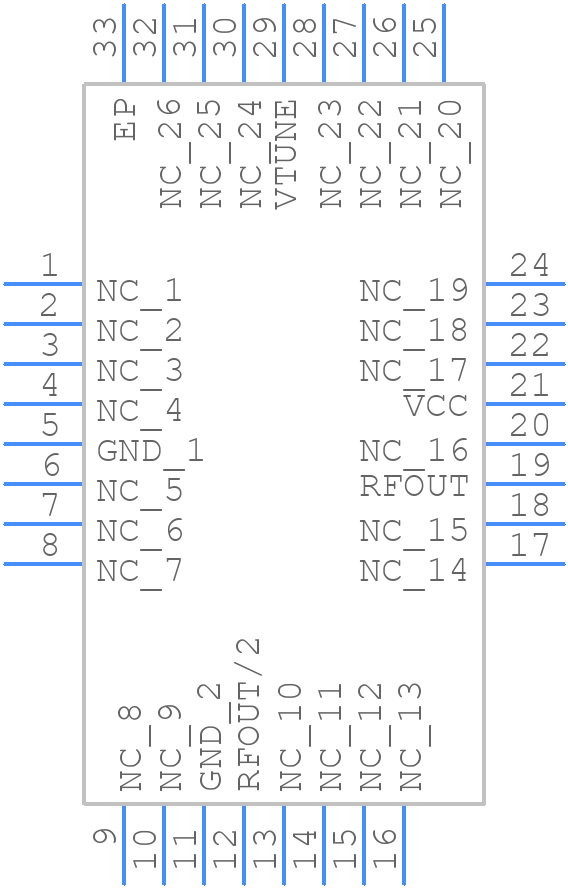

HMC1168LP5E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC1168LP5E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HCP-32-1
click to zoom
3D Models
HMC1168LP5E - Analog Devices - 3D model - Quad Flat No-Lead - HCP-32-1
click to zoom

HMC1168LP5E Details

  • Manufacturer Part Number:

    HMC1168LP5E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP, 32 PIN

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    HALF O/P FREQUENCY ALSO AVAILABLE

  • Control Voltage-Max:

    13 V

  • Control Voltage-Min:

    2 V

  • JESD-609 Code:

    e3

  • Modulation Sensitivity:

    350 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Offset Frequency:

    10 kHz

  • Operating Frequency-Max:

    13720 MHz

  • Operating Frequency-Min:

    12470 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    10 dBm

  • Phase Noise:

    -85 dBc/Hz

  • Physical Dimension:

    5.1mm x 5.1mm x 1.0mm

  • Supply Current-Max:

    240 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

HMC1168LP5E Frequently Asked Questions (FAQs)

  • A good PCB layout for the HMC1168LP5E involves keeping the signal paths short, using a solid ground plane, and separating the analog and digital sections of the board. It's also recommended to use a 4-layer board with a dedicated layer for the power supply and another for the ground plane.
  • To ensure proper biasing, make sure to follow the recommended voltage supply and biasing circuitry as shown in the datasheet. The device requires a single 5V supply, and the VCC pin should be decoupled with a 0.1uF capacitor to ground. Additionally, the VEE pin should be connected to a quiet analog ground.
  • The HMC1168LP5E is designed to operate up to 18 GHz, but the maximum operating frequency may vary depending on the specific application and the quality of the PCB layout. It's recommended to consult the datasheet and application notes for more information on frequency planning and layout considerations.
  • To troubleshoot common issues with the HMC1168LP5E, start by checking the PCB layout and ensuring that the device is properly biased and terminated. Check for any signs of oscillation or instability, such as excessive current draw or noise on the output. Consult the datasheet and application notes for troubleshooting guides and common pitfalls to avoid.
  • The HMC1168LP5E is a high-power device that requires proper thermal management to ensure reliable operation. A recommended strategy is to use a heat sink with a thermal conductivity of at least 1 W/m-K, and to ensure good airflow around the device. The device should be mounted on a 4-layer PCB with a solid ground plane to help dissipate heat.
