HMC156AC8TR - Analog Devices

Description: Signal Conditioning Passive SMT Freq. Doubler 0.7 - 2.4 GHz

Download HMC156AC8TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

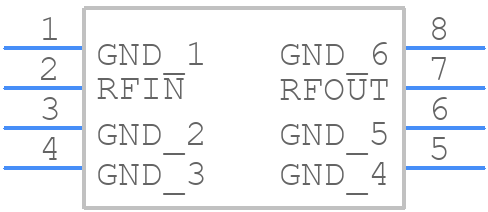

HMC156AC8TR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC156AC8TR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP8
click to zoom
3D Models
HMC156AC8TR - Analog Devices - 3D model - Small Outline Packages - TSSOP8
click to zoom

HMC156AC8TR Details

  • Manufacturer Part Number:

    HMC156AC8TR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRJ-8-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    20 dB

  • Input Power-Max (CW):

    27 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    2400 MHz

  • Operating Frequency-Min:

    700 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    SOP8,.3

  • RF/Microwave Device Type:

    FREQUENCY DOUBLER

  • Surface Mount:

    YES

  • Technology:

    GAAS

HMC156AC8TR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC156AC8TR requires a single positive supply voltage (Vcc) between 3.3V and 5V. Ensure the voltage supply is clean and well-regulated, and decouple the power pins with 0.1uF and 10uF capacitors.
  • The HMC156AC8TR can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • The HMC156AC8TR has a serial interface (SPI) for control and configuration. Use a microcontroller or FPGA with an SPI interface to communicate with the HMC156AC8TR. Ensure the interface signals are properly terminated and matched to the PCB impedance.
  • The typical current consumption of the HMC156AC8TR is around 350mA at 3.3V supply voltage, but this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC156AC8TR Overview

Use the download button to access the HMC156AC8TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC15, or try a keyword search, such as RF/Microwave Frequency Multipliers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
