Please enter a minimum 3 letters or numbers
Technical Content
Part Image

HMC174MS8 - Analog Devices

Description: RF Switch ICs GaAs MMIC T/R SMT Switch DC - 3 GHz

Download HMC174MS8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

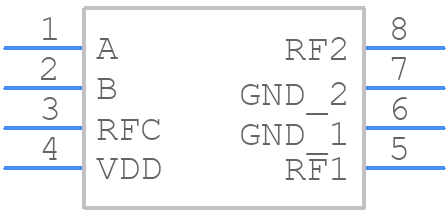

HMC174MS8 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC174MS8 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - HMC189AMS8ETR
click to zoom
3D Models
HMC174MS8 - Analog Devices - 3D model - Small Outline Packages - HMC189AMS8ETR
click to zoom

HMC174MS8 Details

  • Manufacturer Part Number:

    HMC174MS8

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRH-10-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • 1dB Compression Point:

    36 dBm

  • Additional Feature:

    CMOS/TTL COMPATIBLE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    36 dBm

  • Insertion Loss-Max:

    1.8 dB

  • Isolation-Min:

    15 dB

  • JESD-609 Code:

    e0

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • On Time-Nom:

    0.024 µs

  • Operating Frequency-Max:

    3000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Port Termination:

    REFLECTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    SPDT

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • VSWR-Max:

    1.12

HMC174MS8 Frequently Asked Questions (FAQs)

  • A good PCB layout should ensure minimal thermal resistance, use thermal vias, and keep the device away from heat sources. A heat sink or thermal pad can be used to improve thermal management.
  • Use a combination of simulation tools and empirical methods to optimize the biasing and matching networks. Consider using a 50-ohm system and ensure the input and output impedances are matched to minimize reflections.
  • Operate the device within the recommended temperature range (-40°C to 85°C), avoid exceeding the maximum ratings, and ensure proper power sequencing to prevent damage.
  • Use a combination of simulation tools, oscilloscopes, and spectrum analyzers to identify the root cause. Check for proper biasing, matching, and decoupling, and ensure the device is operated within its recommended specifications.
  • Handle the device with ESD-protective equipment, avoid touching the pins, and use anti-static packaging and storage. Follow proper ESD handling procedures to prevent damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC174MS8 Overview

Use the download button to access the HMC174MS8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC17, or try a keyword search, such as RF/Microwave Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to HMC174MS8

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

HMC174MS8 Alternates

Showing results

Image Part Number Model
Part Image HMC174MS8 Hittite Microwave Corp

Diversity Switch, 0MHz Min, 3000MHz Max, 1 Func, 1.8dB Insertion Loss-Max, GAAS
