HMC174MS8E - Analog Devices

Description: RF Switch ICs GaAs MMIC T/R SMT Switch DC - 3 GHz

Download HMC174MS8E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

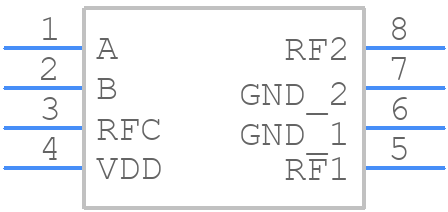

Symbol
HMC174MS8E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC174MS8E - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - HMC189AMS8ETR
click to zoom
3D Models
HMC174MS8E - Analog Devices - 3D model - Small Outline Packages - HMC189AMS8ETR
click to zoom

HMC174MS8E Details

  • Manufacturer Part Number:

    HMC174MS8E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRH-10-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • 1dB Compression Point:

    36 dBm

  • Additional Feature:

    CMOS/TTL COMPATIBLE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Insertion Loss-Max:

    1.8 dB

  • Isolation-Min:

    15 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • On Time-Nom:

    0.024 µs

  • Operating Frequency-Max:

    3000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Port Termination:

    REFLECTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    SPDT

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.12

HMC174MS8E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a thermal pad connected to a heat sink is recommended. Ensure good thermal conductivity and minimal thermal resistance to maintain junction temperature below 125°C.
  • Use a 50Ω system impedance and optimize the biasing and matching network using a network analyzer or simulation tools like ADS or AWR. Ensure the input and output impedances are matched to 50Ω for maximum gain and linearity.
  • The recommended operating voltage is 5V ± 10% with a maximum current of 250mA. Ensure the power supply is well-regulated and decoupled to minimize noise and voltage drops.
  • Use a well-regulated power supply, decouple the power lines, and use a good quality PCB with a solid ground plane. Ensure proper shielding and grounding of the device and surrounding components to minimize electromagnetic interference.
  • The maximum operating frequency is 18GHz. To optimize for high-frequency operation, use a low-loss PCB material, minimize trace lengths, and optimize the matching network for maximum gain and linearity at the desired frequency.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC174MS8E Overview

Use the download button to access the HMC174MS8E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC17, or try a keyword search, such as RF/Microwave Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
