HMC174MS8ETR - Analog Devices

Description: RF Switch ICs GaAs MMIC T/R SMT Switch DC - 3 GHz

Download HMC174MS8ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

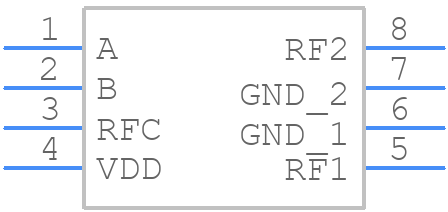

HMC174MS8ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC174MS8ETR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - HMC189AMS8ETR
click to zoom
3D Models
HMC174MS8ETR - Analog Devices - 3D model - Small Outline Packages - HMC189AMS8ETR
click to zoom

HMC174MS8ETR Details

  • Manufacturer Part Number:

    HMC174MS8ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRH-10-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • 1dB Compression Point:

    36 dBm

  • Additional Feature:

    CMOS COMPATIBLE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Insertion Loss-Max:

    1.8 dB

  • Isolation-Min:

    15 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • On Time-Nom:

    0.024 µs

  • Operating Frequency-Max:

    3000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Port Termination:

    REFLECTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    SPDT

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.12

HMC174MS8ETR Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout and thermal management guidelines in their application notes and evaluation board documentation. It's essential to follow these guidelines to ensure optimal performance, especially for high-frequency and high-power applications.
  • Analog Devices provides a set of recommended biasing and tuning procedures in their application notes and datasheet. Additionally, engineers can use simulation tools and models provided by Analog Devices to optimize the amplifier's performance for their specific application.
  • Common sources of noise and interference in the HMC174MS8ETR include thermal noise, shot noise, and electromagnetic interference (EMI). To mitigate these effects, engineers can use proper PCB layout and shielding, decoupling capacitors, and filtering techniques. Additionally, Analog Devices provides guidance on noise reduction and mitigation in their application notes.
  • Analog Devices provides reliability and ruggedness data for the HMC174MS8ETR in their datasheet and application notes. Engineers can also follow industry-standard reliability and ruggedness testing procedures, such as those outlined in MIL-STD-883 and JEDEC standards, to ensure the device meets their specific requirements.
  • The HMC174MS8ETR is a versatile amplifier that can be used in a wide range of applications, including microwave and millimeter-wave systems, radar, satellite communications, and test and measurement equipment. Engineers can explore these applications and use cases by reviewing Analog Devices' application notes, white papers, and case studies.
