HMC187AMS8 - Analog Devices

Description: Signal Conditioning Passive Freq. Doubler, 0.85 - 2.0 GHz

Download HMC187AMS8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

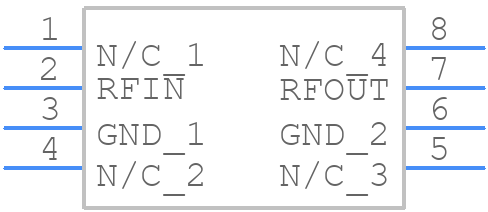

Symbol
HMC187AMS8 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC187AMS8 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - HMC187
click to zoom
3D Models
HMC187AMS8 - Analog Devices - 3D model - Small Outline Packages - HMC187
click to zoom

HMC187AMS8 Details

  • Manufacturer Part Number:

    HMC187AMS8

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRM-8-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    18 dB

  • Input Power-Max (CW):

    27 dBm

  • JESD-609 Code:

    e0

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    2000 MHz

  • Operating Frequency-Min:

    850 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • RF/Microwave Device Type:

    FREQUENCY DOUBLER

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

HMC187AMS8 Frequently Asked Questions (FAQs)

  • A good PCB layout for the HMC187AMS8 involves keeping the signal paths short, using a solid ground plane, and minimizing the distance between the device and the antenna. It's also recommended to use a 50-ohm microstrip transmission line to connect the device to the antenna. Analog Devices provides a recommended PCB layout in their application notes and evaluation board documentation.
  • To optimize the biasing of the HMC187AMS8, it's recommended to use a voltage-controlled biasing scheme, where the bias voltage is adjusted based on the output power level. This can be achieved using an external voltage regulator and a resistive divider network. Additionally, the bias current should be set to the minimum required value to achieve the desired output power, as excessive bias current can reduce power efficiency.
  • The HMC187AMS8 is rated for operation from -40°C to +85°C, but it's recommended to derate the output power at higher temperatures to ensure reliable operation. The device's thermal resistance (θjc) is 12°C/W, and the maximum junction temperature is 150°C.
  • To troubleshoot common issues with the HMC187AMS8, it's recommended to check the PCB layout, biasing, and input/output matching networks. Ensure that the device is properly soldered and that there are no shorts or opens on the PCB. Use a spectrum analyzer to check for oscillations or spurious emissions, and verify that the input signal is within the recommended frequency range and power level.
  • Yes, the HMC187AMS8 can be used in a push-pull configuration to achieve higher output power. However, this requires careful design and layout of the PCB, as well as proper biasing and matching of the two devices. Analog Devices provides application notes and reference designs for push-pull configurations using the HMC187AMS8.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC187AMS8 Overview

Use the download button to access the HMC187AMS8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC18, or try a keyword search, such as RF/Microwave Frequency Multipliers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
