HMC187AMS8E - Analog Devices

Description: ANALOG DEVICES - HMC187AMS8E - FREQUENCY DOUBLER, 0.85-2GHZ, MSOP-8

Download HMC187AMS8E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

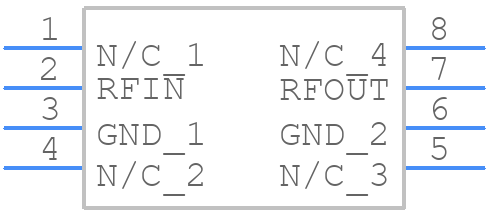

Symbol
HMC187AMS8E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC187AMS8E - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - HMC189AMS8ETR
click to zoom
3D Models
HMC187AMS8E - Analog Devices - 3D model - Small Outline Packages - HMC189AMS8ETR
click to zoom

HMC187AMS8E Details

  • Manufacturer Part Number:

    HMC187AMS8E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRM-8-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    18 dB

  • Input Power-Max (CW):

    27 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    2000 MHz

  • Operating Frequency-Min:

    850 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • RF/Microwave Device Type:

    FREQUENCY DOUBLER

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

HMC187AMS8E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Ensure the Vcc and Vee pins are properly decoupled with 100nF capacitors, and the Iset pin is connected to a 10kΩ resistor to set the current limit. Also, ensure the input and output pins are properly terminated.
  • The HMC187AMS8E can operate up to 18 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • The HMC187AMS8E has a thermal pad on the bottom of the package. Ensure good thermal contact between the thermal pad and the PCB, and consider using thermal vias to dissipate heat.
  • The recommended input and output impedance is 50Ω. Ensure the input and output traces are properly terminated with 50Ω resistors to minimize reflections and ensure optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC187AMS8E Overview

Use the download button to access the HMC187AMS8E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC18, or try a keyword search, such as RF/Microwave Frequency Multipliers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
