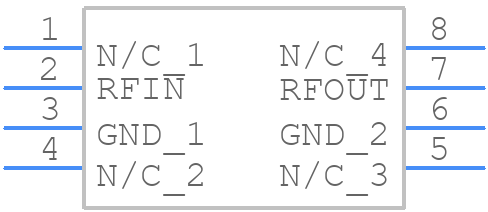

HMC187AMS8ETR - Analog Devices

HMC187AMS8ETR Frequently Asked Questions (FAQs)

• What is the recommended PCB layout and thermal management for optimal performance?
  A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and connecting it to a heat sink or a metal plate.
• How do I optimize the biasing and matching networks for maximum gain and efficiency?
  Use a combination of simulation tools and empirical methods to optimize the biasing and matching networks. Consider using a load-pull analysis to optimize the output matching network.
• What are the critical components and layout considerations for minimizing noise and EMI?
  Use a low-noise voltage regulator, decouple the power supply lines, and keep the signal lines away from the power lines. Use a shielded enclosure and consider using EMI filters or absorbers.
• How do I ensure the device operates within the safe operating area (SOA) and avoid overheating?
  Monitor the device's junction temperature and ensure it stays within the recommended range. Use a thermal management system and ensure good airflow around the device.
• What are the recommended test and measurement procedures for characterizing the device's performance?
  Use a vector network analyzer (VNA) to measure the device's S-parameters, and a spectrum analyzer to measure the output power and spectral purity. Use a calibrated test fixture and ensure proper calibration of the measurement equipment.
