HMC190BMS8ETR - Analog Devices

Description: RF Switch ICs Transmit/Receive (T/R) Switch, SPDT

Download HMC190BMS8ETR Model

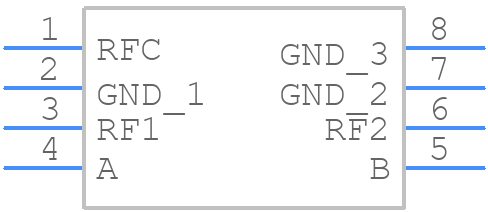

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC190BMS8ETR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - HMC189AMS8ETR
click to zoom
3D Models
HMC190BMS8ETR - Analog Devices  - 3D model - Small Outline Packages - HMC189AMS8ETR
click to zoom

HMC190BMS8ETR Details

  • Manufacturer Part Number:

    HMC190BMS8ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRM-8-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • 1dB Compression Point:

    29 dBm

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    27 dBm

  • Insertion Loss-Max:

    1 dB

  • Isolation-Min:

    19 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • On Time-Nom:

    0.01 µs

  • Operating Frequency-Max:

    3000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Port Termination:

    REFLECTIVE

  • RF/Microwave Device Type:

    SPDT

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • VSWR-Max:

    1.2

HMC190BMS8ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter the power supply.
  • The HMC190BMS8ETR requires a single 5V power supply. Ensure the power supply is clean and well-regulated. A 0.1uF decoupling capacitor should be placed close to the device. The recommended bias current is 10mA.
  • The HMC190BMS8ETR can operate up to 18GHz. However, the maximum operating frequency may vary depending on the specific application and PCB layout.
  • The HMC190BMS8ETR has a parallel interface. Use a microcontroller or FPGA with a parallel interface to communicate with the device. Ensure the interface signals are properly terminated and matched to the device's input impedance.
  • The typical current consumption of the HMC190BMS8ETR is 10mA at 5V. However, this may vary depending on the specific application and operating conditions.
