- Part Number HMC194MS8E
- Manufacturer Analog Devices
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - HMC194
- Released Date Nov 24, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HMC194MS8E Details
-
Manufacturer Part Number:
HMC194MS8E
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
MSOP-8
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.70.00
-
Manufacturer:
Analog Devices Inc
-
YTEOL:
0
-
1dB Compression Point:
28 dBm
-
Additional Feature:
CMOS COMPATIBLE, HIGH ISOLATION
-
Characteristic Impedance:
50 Ω
HMC194MS8E Frequently Asked Questions (FAQs)
-
A good PCB layout for the HMC194MS8E involves keeping the signal paths short, using a solid ground plane, and minimizing the distance between the device and the antenna. It's also recommended to use a 4-layer PCB with a dedicated ground plane and to avoid routing signals under the device.
-
Optimizing impedance matching for the HMC194MS8E involves using a combination of series and shunt components to match the device's input impedance to the antenna's impedance. A good starting point is to use the recommended values in the datasheet, and then fine-tune the matching network using simulation tools or measurement equipment.
-
The maximum power handling capability of the HMC194MS8E is typically limited by the device's thermal characteristics and the PCB's thermal management capabilities. According to the datasheet, the device can handle up to 30 dBm of input power, but this may vary depending on the specific application and operating conditions.
-
Proper biasing of the HMC194MS8E involves ensuring that the device is operated within its recommended voltage and current ranges. This typically involves using a voltage regulator to provide a stable supply voltage, and using resistors and capacitors to set the bias voltage and current. It's also important to ensure that the bias circuitry is properly decoupled from the RF signal path.
-
Thermal management of the HMC194MS8E is critical to ensure reliable operation and prevent overheating. Key considerations include using a heat sink or thermal pad to dissipate heat, ensuring good airflow around the device, and avoiding thermal hotspots on the PCB. It's also important to monitor the device's temperature and adjust the thermal management strategy accordingly.
Trust Checks
Community Provided
System Verified
Community Approved
HMC194MS8E Overview

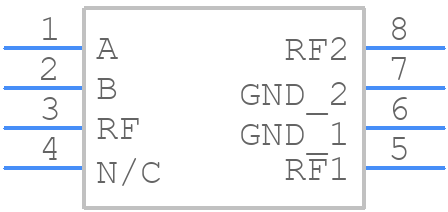

Use the download button to access the HMC194MS8E schematic symbol, PCB footprint, and 3D model.
