HMC199AMS8ETR - Analog Devices

Description: ANALOG DEVICES - HMC199AMS8ETR - RF SWITCH, SPDT, DUAL, DC-2.5GHZ, MSOP-8

Download HMC199AMS8ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

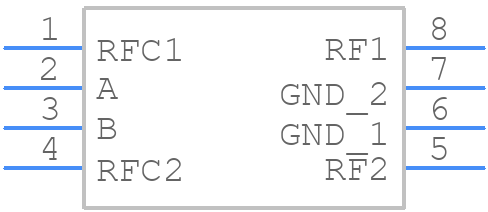

HMC199AMS8ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC199AMS8ETR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - H199A
click to zoom
3D Models
HMC199AMS8ETR - Analog Devices - 3D model - Small Outline Packages - H199A
click to zoom

HMC199AMS8ETR Details

  • Manufacturer Part Number:

    HMC199AMS8ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • 1dB Compression Point:

    28 dBm

  • Additional Feature:

    CMOS/TTL COMPATIBILE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    29.3 dBm

  • Insertion Loss-Max:

    1 dB

  • Isolation-Min:

    17 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • On Time-Nom:

    0.04 µs

  • Operating Frequency-Max:

    2500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Port Termination:

    REFLECTIVE

  • RF/Microwave Device Type:

    SPDT

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • VSWR-Max:

    1.07

HMC199AMS8ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC199AMS8ETR requires a single 5V supply. Ensure the voltage supply is clean and regulated, and decouple the power pins with 10nF and 100nF capacitors to minimize noise.
  • The HMC199AMS8ETR can operate up to 18 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • The HMC199AMS8ETR has a serial interface that can be connected to a microcontroller or FPGA using a SPI or I2C interface. Ensure the interface is properly terminated and the clock frequency is within the recommended range.
  • The typical current consumption of the HMC199AMS8ETR is around 350mA, but this can vary depending on the operating frequency and mode of operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC199AMS8ETR Overview

Use the download button to access the HMC199AMS8ETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC19, or try a keyword search, such as RF/Microwave Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
