HMC219BMS8GETR - Analog Devices

Description: 2.5 GHz to 7.0 GHz GaAs, MMIC Fundamental Mixer

Download HMC219BMS8GETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

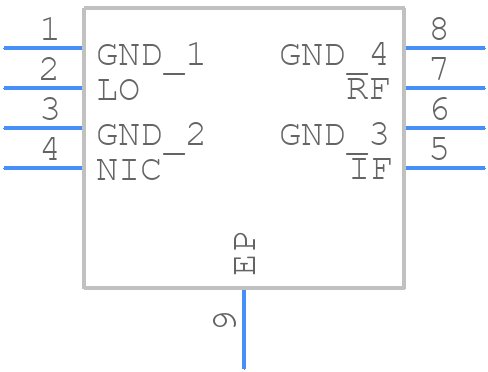

HMC219BMS8GETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC219BMS8GETR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 412B
click to zoom
3D Models
HMC219BMS8GETR - Analog Devices - 3D model - Small Outline Packages - 412B
click to zoom

HMC219BMS8GETR Details

  • Manufacturer Part Number:

    HMC219BMS8GETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MO-187AA-T, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    RH-8-4

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-01-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    11 dB

  • Input Power-Max (CW):

    25 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    7000 MHz

  • Operating Frequency-Min:

    2500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Terminal Finish:

    Matte Tin (Sn)

HMC219BMS8GETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or ferrite bead to filter the power supply.
  • Calibrate the device using the recommended calibration procedure outlined in the datasheet. This involves applying a known input signal and adjusting the internal calibration registers to achieve optimal performance.
  • The HMC219BMS8GETR is rated for operation from -40°C to +85°C. However, it's recommended to operate the device within a temperature range of 0°C to +70°C for optimal performance and reliability.
  • Yes, the HMC219BMS8GETR is designed to operate in high-vibration environments. However, it's recommended to follow proper mounting and soldering techniques to ensure the device is securely attached to the PCB.
  • Use a logic analyzer or oscilloscope to monitor the device's digital outputs and analog inputs. Check the power supply voltage and ensure it's within the recommended range. Consult the datasheet and application notes for troubleshooting guides and FAQs.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC219BMS8GETR Overview

Use the download button to access the HMC219BMS8GETR schematic symbol, PCB footprint, and 3D model.
