- Part Number HMC220AMS8
- Manufacturer Analog Devices
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 213A
- Released Date Dec 11, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HMC220AMS8 Details
-
Manufacturer Part Number:
HMC220AMS8
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Package Description:
MSOP-8
-
Pin Count:
8
-
Manufacturer Package Code:
HRM-8-1
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
-
YTEOL:
0
HMC220AMS8 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
-
The HMC220AMS8 requires a single 5V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
-
The HMC220AMS8 can operate up to 2.5 GHz, but the maximum frequency of operation depends on the specific application and the quality of the PCB layout.
-
The HMC220AMS8 has a parallel interface that can be connected to a microcontroller or FPGA. Ensure the interface signals are properly terminated and that the clock and data signals are properly synchronized.
-
The typical current consumption of the HMC220AMS8 is 350mA, but this can vary depending on the specific application and operating conditions.
Trust Checks
Community Provided
System Verified
Community Approved
HMC220AMS8 Overview

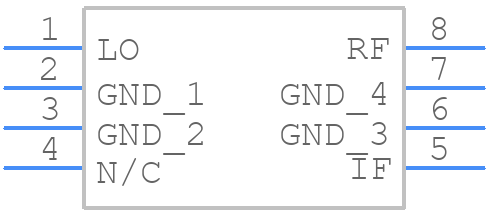

Use the download button to access the HMC220AMS8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC22,
or try a keyword search, such as RF/Microwave Mixers
