HMC220AMS8E - Analog Devices

Description: Analog Devices Hittite HMC220AMS8E, Up-Down Converter & Mixer Circuit 12GHz Gain=8 dB 8-Pin MSOP

Download HMC220AMS8E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

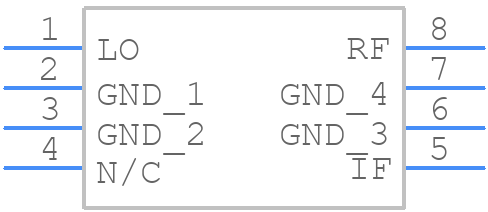

Symbol
HMC220AMS8E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC220AMS8E - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - HMC189AMS8ETR
click to zoom
3D Models
HMC220AMS8E - Analog Devices - 3D model - Small Outline Packages - HMC189AMS8ETR
click to zoom

HMC220AMS8E Details

  • Manufacturer Part Number:

    HMC220AMS8E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, ULTRA MINIATURE, PLASTIC, SMT, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRM-8-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    10.5 dB

  • Input Power-Max (CW):

    13 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    12000 MHz

  • Operating Frequency-Min:

    5000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSOP8,.19

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

HMC220AMS8E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC220AMS8E requires a single 5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The recommended bias voltage is 2.5V, which can be achieved using a voltage divider or a dedicated voltage reference.
  • The HMC220AMS8E can operate up to 2.5 GHz, but the maximum frequency of operation depends on the specific application and the quality of the PCB layout. In general, it's recommended to operate the device at frequencies below 1.5 GHz for optimal performance.
  • Thermal noise can be minimized by using a low-noise power supply, keeping the device at a stable temperature, and using a low-noise amplifier or filter in the signal chain. Additionally, using a shielded enclosure and keeping the device away from heat sources can help reduce thermal noise.
  • The HMC220AMS8E has an integrated ESD protection circuit, but additional external protection is recommended. Use a TVS (Transient Voltage Suppressor) diode or a dedicated ESD protection device to protect the device from electrostatic discharge.
