HMC220AMS8ETR - Analog Devices

Description: Up/Down Conv Mixer 12GHz 8-Pin MSOP T/R

Download HMC220AMS8ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

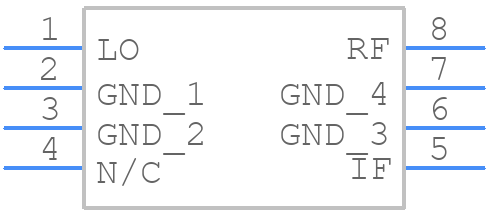

Symbol
HMC220AMS8ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC220AMS8ETR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - HMC199AMS8E
click to zoom
3D Models
HMC220AMS8ETR - Analog Devices - 3D model - Small Outline Packages - HMC199AMS8E
click to zoom

HMC220AMS8ETR Details

  • Manufacturer Part Number:

    HMC220AMS8ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, ULTRA MINIATURE, PLASTIC, SMT, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRM-8-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    10.5 dB

  • Input Power-Max (CW):

    13 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    12000 MHz

  • Operating Frequency-Min:

    5000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSOP8,.19

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

HMC220AMS8ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or ferrite bead to filter the power supply.
  • The HMC220AMS8ETR requires a single 5V power supply. Ensure the power supply is clean and well-regulated. A 0.1uF decoupling capacitor should be placed close to the device. The device also requires a bias resistor (Rbias) to set the output common-mode voltage.
  • The HMC220AMS8ETR can support data rates up to 10.3 Gbps. However, the actual data rate achievable depends on the system design, PCB layout, and signal integrity.
  • Use an oscilloscope to check the input and output signals. Verify the power supply voltage and decoupling. Check for signal integrity issues such as ringing, overshoot, or undershoot. Consult the datasheet and application notes for troubleshooting guides.
  • Yes, the HMC220AMS8ETR is designed for differential signaling applications. It has a differential output stage that can drive differential signals over long distances while maintaining signal integrity.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC220AMS8ETR Overview

Use the download button to access the HMC220AMS8ETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC22, or try a keyword search, such as RF/Microwave Mixers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
