HMC220BMS8GE - Analog Devices

Description: RF Mixer 5-12 GHz DBL-BAL Mixer

Download HMC220BMS8GE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

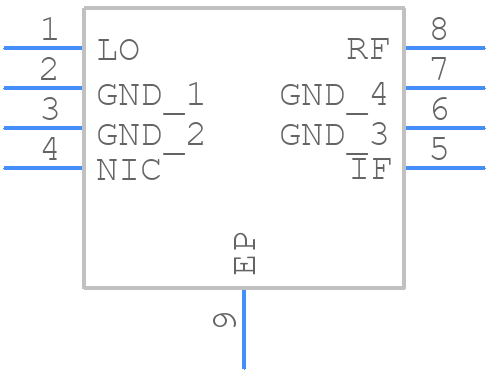

HMC220BMS8GE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC220BMS8GE - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RH-8-3
click to zoom
3D Models
HMC220BMS8GE - Analog Devices - 3D model - Small Outline Packages - RH-8-3
click to zoom

HMC220BMS8GE Details

  • Manufacturer Part Number:

    HMC220BMS8GE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MO-187AA-T, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RH-8-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    13 dB

  • Input Power-Max (CW):

    25 dBm

  • Operating Frequency-Max:

    12000 MHz

  • Operating Frequency-Min:

    5000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    DOUBLE BALANCED

HMC220BMS8GE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC220BMS8GE requires a single 5V supply. Ensure the voltage supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
  • The HMC220BMS8GE can operate up to 2.5 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • The HMC220BMS8GE has a parallel interface that can be connected to a microcontroller or FPGA. Ensure the interface signals are properly terminated and that the clock signal is synchronized with the data signals.
  • The typical power consumption of the HMC220BMS8GE is around 1.5W, but this can vary depending on the operating frequency and the specific application.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC220BMS8GE Overview

Use the download button to access the HMC220BMS8GE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC22, or try a keyword search, such as RF/Microwave Mixers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
