HMC232ALP4E - Analog Devices

Description: ANALOG DEVICES - HMC232ALP4E - RF SWITCH, SPDT, 12GHZ, QFN-24

Download HMC232ALP4E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

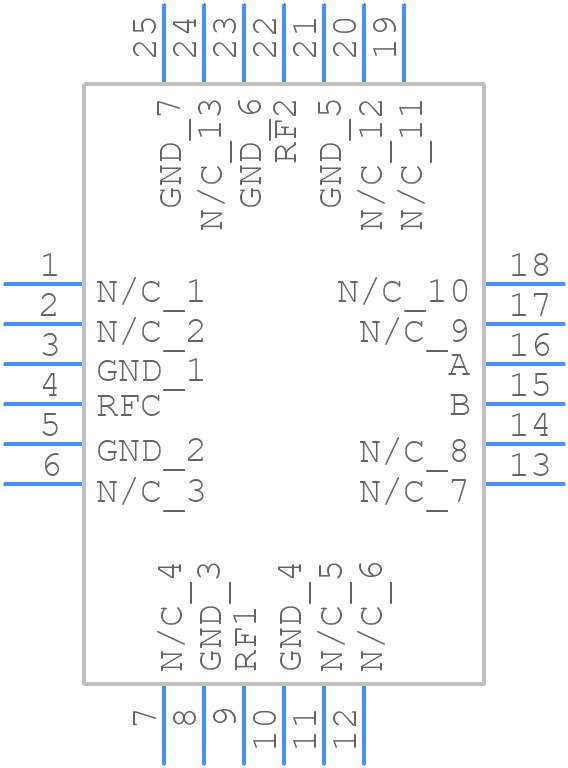

HMC232ALP4E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC232ALP4E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-VFQFN Exposed Pad
click to zoom
3D Models
HMC232ALP4E - Analog Devices - 3D model - Quad Flat No-Lead - 24-VFQFN Exposed Pad
click to zoom

HMC232ALP4E Details

  • Manufacturer Part Number:

    HMC232ALP4E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMT, QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-16

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • 1dB Compression Point:

    26 dBm

  • Additional Feature:

    HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30.9 dBm

  • Insertion Loss-Max:

    3.1 dB

  • Isolation-Min:

    40 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • On Time-Nom:

    0.025 µs

  • Operating Frequency-Max:

    12000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Port Termination:

    ABSORPTIVE

  • RF/Microwave Device Type:

    SPDT

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

HMC232ALP4E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC232ALP4E requires a single +5V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
  • The HMC232ALP4E can operate up to 2.5 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • The HMC232ALP4E has a parallel interface that can be connected to a microcontroller or FPGA. Ensure the interface signals are properly terminated and that the clock signal is synchronized with the data signals.
  • The typical current consumption of the HMC232ALP4E is around 350mA, but this can vary depending on the specific application and operating frequency.
