- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for HMC232LP4
- Part Number HMC232LP4
- Manufacturer Analog Devices
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - HMC232
- Released Date Jun 29, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HMC232LP4 Details
-
Manufacturer Part Number:
HMC232LP4
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Package Description:
QFN-24
-
Pin Count:
24
-
Manufacturer Package Code:
HCP-16-1
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
-
YTEOL:
0
HMC232LP4 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
-
The HMC232LP4 requires a single +5V power supply. Ensure the power supply is clean and well-regulated, and decouple the power pins with 0.1uF and 10uF capacitors.
-
The HMC232LP4 can support data rates up to 3.2 Gbps, but the actual data rate achievable depends on the specific application, PCB layout, and signal integrity.
-
Use a high-speed oscilloscope to measure the signal quality and eye diagram. Check for signal reflections, ringing, and jitter. Verify the PCB layout and signal routing, and ensure proper termination and impedance matching.
-
Yes, the HMC232LP4 can be used in a differential signaling application. The device has a differential output stage that can drive differential signals, and it can also be used to convert single-ended signals to differential signals.
Trust Checks
Community Provided
System Verified
Community Approved
HMC232LP4 Overview

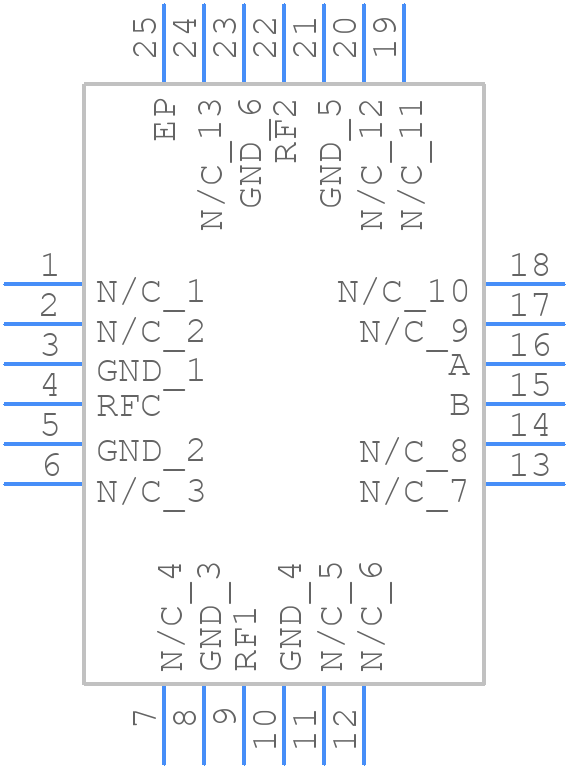

Use the download button to access the HMC232LP4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC23,
or try a keyword search, such as RF/Microwave Switches
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
