HMC241QS16E - Analog Devices

Description: Analog Devices Hittite HMC241QS16E, RF Switch Circuit 3.5GHz Single SP4T 23dB Isolation CMOS/TTL Maximum of 5 V dc

Download HMC241QS16E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

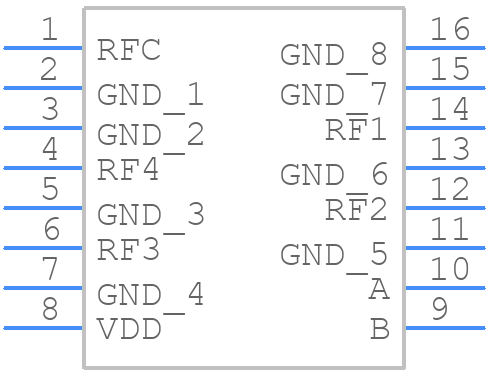

HMC241QS16E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC241QS16E - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSL1_2022
click to zoom
3D Models
HMC241QS16E - Analog Devices - 3D model - Small Outline Packages - MSL1_2022
click to zoom

HMC241QS16E Details

  • Manufacturer Part Number:

    HMC241QS16E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    HRQ-16-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • 1dB Compression Point:

    25 dBm

  • Additional Feature:

    CMOS/TTL COMPATIBLE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    26.99 dBm

  • Insertion Loss-Max:

    1.5 dB

  • Isolation-Min:

    23 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • On Time-Nom:

    0.15 µs

  • Operating Frequency-Max:

    3500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SSOP16,.25

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    SP4T

  • Supply Current-Max:

    7 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.2

HMC241QS16E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC241QS16E requires a single +5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The Vcc pin should be connected to a clean power source, and the Vee pin should be connected to a quiet ground.
  • The HMC241QS16E can operate up to 16 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout. In general, it's recommended to operate the device at frequencies below 12 GHz for optimal performance.
  • The HMC241QS16E has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. Avoid touching the device or its leads to prevent thermal damage.
  • The HMC241QS16E has a 50Ω input and output impedance. Ensure the input and output traces are impedance-matched to 50Ω to minimize reflections and ensure optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC241QS16E Overview

Use the download button to access the HMC241QS16E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC24, or try a keyword search, such as RF/Microwave Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
