HMC245AQS16ETR - Analog Devices

Description: ANALOG DEVICES - HMC245AQS16ETR - RF Switch IC, SP3T, Non-Reflective, DC to 3.5 GHz, 4.5 V to 5.5 V, QSOP-16

Download HMC245AQS16ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

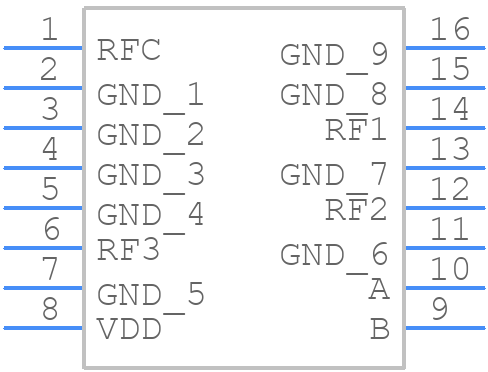

HMC245AQS16ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC245AQS16ETR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - HMC245AQS16ETR
click to zoom
3D Models
HMC245AQS16ETR - Analog Devices - 3D model - Small Outline Packages - HMC245AQS16ETR
click to zoom

HMC245AQS16ETR Details

  • Manufacturer Part Number:

    HMC245AQS16ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MO-137AB, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RQ-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • 1dB Compression Point:

    28 dBm

  • Additional Feature:

    CMOS/TTL COMPATIBILE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    23.4 dBm

  • Insertion Loss-Max:

    1.5 dB

  • Isolation-Min:

    26 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • On Time-Nom:

    0.15 µs

  • Operating Frequency-Max:

    3500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SSOP16,.25

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    SP3T

  • Supply Current-Max:

    6 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • VSWR-Max:

    1.15

HMC245AQS16ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power planes. Use a common mode choke or a ferrite bead to filter the power supply.
  • The HMC245AQS16ETR requires a single 5V power supply. Ensure the power supply is clean and well-regulated. A 0.1uF decoupling capacitor should be placed close to the device. The device also requires a bias voltage of 2.5V on the VBIAS pin.
  • The HMC245AQS16ETR can support data rates up to 16 Gbps. However, the actual data rate achieved will depend on the system design, PCB layout, and signal integrity.
  • Use an oscilloscope to check the signal integrity and eye diagram. Verify the power supply and bias voltage are within specifications. Check for signal reflections and crosstalk. Use a signal generator to test the device in a loopback configuration.
  • The HMC245AQS16ETR operates over a temperature range of -40°C to 85°C. However, the device's performance may degrade at extreme temperatures.
