HMC245QS16ETR - Analog Devices

Description: Ic, Gaas Mmic Sp3T Switch, 0.5-3.5 Ghz,

Download HMC245QS16ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

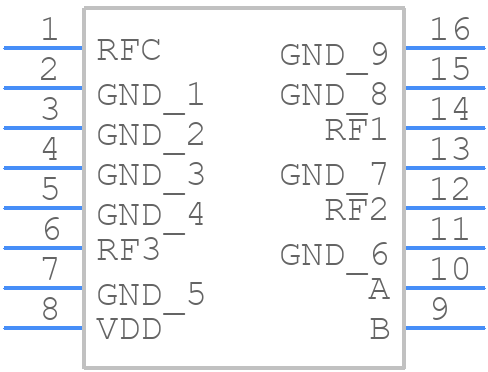

HMC245QS16ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC245QS16ETR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - HMC245AQS16ETR
click to zoom
3D Models
HMC245QS16ETR - Analog Devices - 3D model - Small Outline Packages - HMC245AQS16ETR
click to zoom

HMC245QS16ETR Details

  • Manufacturer Part Number:

    HMC245QS16ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SMT, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    HRQ-16-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • 1dB Compression Point:

    26 dBm

  • Additional Feature:

    CMOS/TTL COMPATIBLE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    26.99 dBm

  • Insertion Loss-Max:

    1 dB

  • Isolation-Min:

    26 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • On Time-Nom:

    0.15 µs

  • Operating Frequency-Max:

    3500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SSOP16,.25

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    SP3T

  • Supply Current-Max:

    6 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.22

HMC245QS16ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a thermal pad connected to a heat sink is recommended. Ensure good thermal conductivity and minimal thermal resistance to maintain junction temperature below 125°C.
  • Use a low-ESR output capacitor, minimize trace inductance, and ensure a low-impedance output stage. Optimize the output stage for a 50-ohm load and use a conjugate match for maximum power transfer.
  • Use a pi-network or a T-network for input and output matching. The recommended values can be found in the application note or by using a network analyzer to optimize the match for the specific application.
  • Use a high-impedance input stage, minimize the noise figure by optimizing the input match, and use a high-gain, low-noise amplifier stage. Ensure proper shielding and grounding to minimize electromagnetic interference.
  • Operate the device within the recommended temperature range (-40°C to 85°C), ensure a stable power supply, and avoid exceeding the maximum ratings for voltage, current, and power dissipation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC245QS16ETR Overview

Use the download button to access the HMC245QS16ETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC24, or try a keyword search, such as RF/Microwave Switches
