HMC252AQS24E - Analog Devices

Description: ANALOG DEVICES - HMC252AQS24E - RF Switch IC, SP6T Non-reflective, DC to 3 GHz, 3 V to 5 V, QSOP-24

Download HMC252AQS24E Model

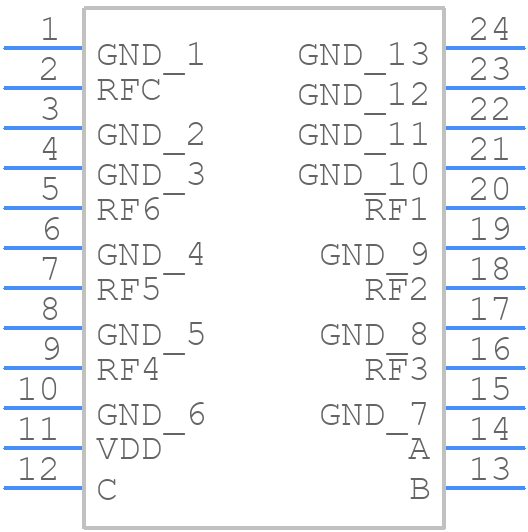

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC252AQS24E - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RQ-24 (QSOP)_inches
click to zoom
3D Models
HMC252AQS24E - Analog Devices  - 3D model - Small Outline Packages - RQ-24 (QSOP)_inches
click to zoom

HMC252AQS24E Details

  • Manufacturer Part Number:

    HMC252AQS24E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    HRQ-24-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • 1dB Compression Point:

    28 dBm

  • Additional Feature:

    CMOS COMPATIBLE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    29.78 dBm

  • Insertion Loss-Max:

    1.8 dB

  • Isolation-Min:

    26 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    3000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    3.3/5 V

  • RF/Microwave Device Type:

    SP6T

  • Supply Current-Max:

    7 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.15

HMC252AQS24E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity and heat dissipation by using a heat sink or thermal pad under the package.
  • Use a network analyzer to measure the input and output impedance of the device. Then, design and optimize the matching networks using a simulation tool like ADS or AWR Microwave Office.
  • Follow the recommended biasing and tuning procedures outlined in the datasheet. Use a variable voltage source to adjust the bias voltage, and a spectrum analyzer to monitor the output power and frequency.
  • Monitor the device's junction temperature, output power, and voltage to ensure they remain within the specified limits. Use a thermal sensor and a power detector to monitor the device's operating conditions.
  • Handle the device with an ESD wrist strap or mat, and ensure the PCB is designed with ESD protection in mind. Use a static-dissipative packaging material and follow proper storage and handling procedures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC252AQS24E Overview

Use the download button to access the HMC252AQS24E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC25, or try a keyword search, such as RF/Microwave Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
