HMC252AQS24ETR - Analog Devices

Description: RF Switch ICs SP6T,Pos Bias, Non-Reflective

Download HMC252AQS24ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

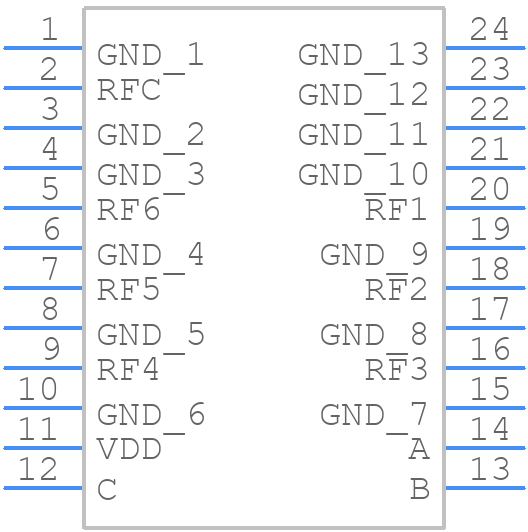

Symbol
HMC252AQS24ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC252AQS24ETR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - QSOP(Height 1.75mm)
click to zoom
3D Models
HMC252AQS24ETR - Analog Devices - 3D model - Small Outline Packages - QSOP(Height 1.75mm)
click to zoom

HMC252AQS24ETR Details

  • Manufacturer Part Number:

    HMC252AQS24ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    HRQ-24-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • 1dB Compression Point:

    24 dBm

  • Additional Feature:

    CMOS/TTL COMPATIBILE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    24.4 dBm

  • Insertion Loss-Max:

    1.8 dB

  • Isolation-Min:

    26 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • On Time-Nom:

    0.09 µs

  • Operating Frequency-Max:

    3000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SSOP24,.24

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    3.3,5 V

  • RF/Microwave Device Type:

    SP6T

  • Supply Current-Max:

    7 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • VSWR-Max:

    1.15

HMC252AQS24ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter the power supply.
  • The HMC252AQS24ETR requires a single 5V power supply. Ensure the power supply is clean and well-regulated. A 0.1uF decoupling capacitor should be placed close to the device. The bias voltage (Vcc) should be connected to a quiet power supply rail.
  • The HMC252AQS24ETR can operate up to 2.5 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout. In general, the device can operate up to 1.5 GHz with minimal degradation in performance.
  • The HMC252AQS24ETR has a maximum junction temperature of 150°C. Ensure good airflow around the device and use a heat sink if necessary. Avoid blocking the airflow around the device and keep the ambient temperature below 85°C.
  • The HMC252AQS24ETR has internal ESD protection, but additional external protection is recommended. Use a TVS diode or a transient voltage suppressor to protect the device from electrostatic discharge.
