HMC253AQS24E - Analog Devices

Description: RF Switch ICs SP8T Non-Reflective Swt , DC - 3.5 GHz

Download HMC253AQS24E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

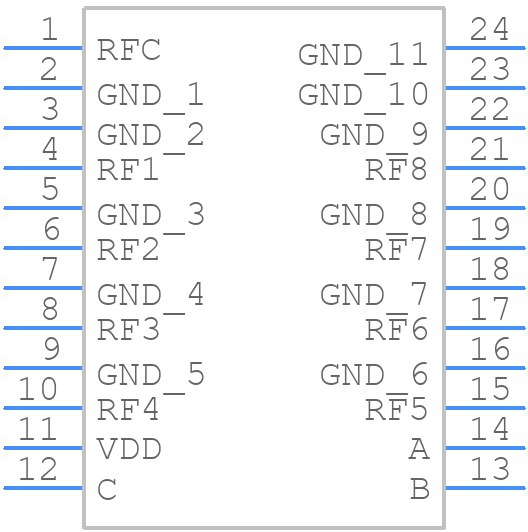

HMC253AQS24E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC253AQS24E - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - HMC253AQS24E-1
click to zoom
3D Models
HMC253AQS24E - Analog Devices - 3D model - Small Outline Packages - HMC253AQS24E-1
click to zoom

HMC253AQS24E Details

  • Manufacturer Part Number:

    HMC253AQS24E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    HRQ-24-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • 1dB Compression Point:

    23 dBm

  • Additional Feature:

    CMOS COMPATIBLE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    20 dBm

  • Insertion Loss-Max:

    2.1 dB

  • Isolation-Min:

    28 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • On Time-Nom:

    0.09 µs

  • Operating Frequency-Max:

    2500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SSOP24,.24

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    DIVERSITY SWITCH

  • Supply Current-Max:

    7.5 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • VSWR-Max:

    1.2

HMC253AQS24E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and a heat sink if necessary.
  • Use a high-quality, low-noise power supply, and ensure proper impedance matching between the device and the load. Also, optimize the device's gain and bias settings for the specific application.
  • Use a 50-ohm termination for the input and output ports, and ensure that the termination is close to the device to minimize reflections and signal degradation.
  • Use a high-quality, low-noise power supply, and ensure that the device is properly shielded and grounded. Also, optimize the device's bias settings and operating conditions for minimum noise figure and phase noise.
  • Operate the device within the recommended temperature range (-40°C to 85°C), and ensure that the device is not exposed to excessive humidity, vibration, or mechanical stress.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC253AQS24E Overview

Use the download button to access the HMC253AQS24E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC25, or try a keyword search, such as RF/Microwave Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
