HMC253AQS24ETR - Analog Devices

Description: RF Switch ICs GAAS MMIC SP8T Non-Reflective Switch, DC - 2.5 GHz

Download HMC253AQS24ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

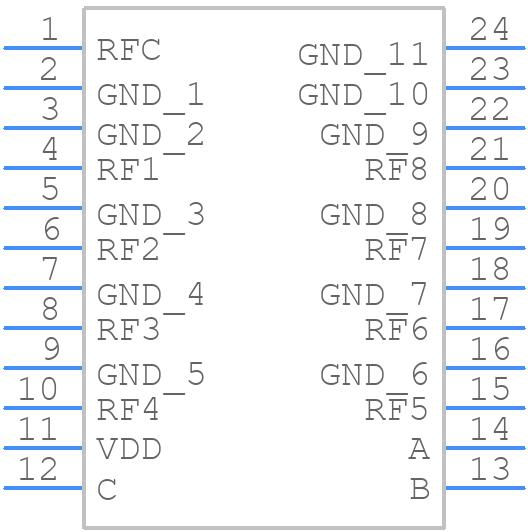

Symbol
HMC253AQS24ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC253AQS24ETR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - HMC253AQS24ETR
click to zoom
3D Models
HMC253AQS24ETR - Analog Devices - 3D model - Small Outline Packages - HMC253AQS24ETR
click to zoom

HMC253AQS24ETR Details

  • Manufacturer Part Number:

    HMC253AQS24ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    HRQ-24-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • 1dB Compression Point:

    23 dBm

  • Additional Feature:

    CMOS/TTL COMPATIBILE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    20 dBm

  • Insertion Loss-Max:

    2.1 dB

  • Isolation-Min:

    28 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • On Time-Nom:

    0.09 µs

  • Operating Frequency-Max:

    2500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SSOP24,.24

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    SP8T

  • Supply Current-Max:

    7.5 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • VSWR-Max:

    1.2

HMC253AQS24ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter the power supply.
  • The HMC253AQS24ETR requires a single 5V power supply. Ensure the power supply is clean and well-regulated. A 0.1uF decoupling capacitor should be placed close to the device. The device also requires a bias current of 10mA to 20mA.
  • The HMC253AQS24ETR can operate up to 24GHz. However, the maximum operating frequency may vary depending on the specific application and PCB layout.
  • The HMC253AQS24ETR has a serial interface that can be connected to a microcontroller or FPGA. Use a level translator if necessary to match the voltage levels. Ensure the interface is properly terminated and the clock signal is clean and stable.
  • The typical current consumption of the HMC253AQS24ETR is around 150mA. However, this may vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC253AQS24ETR Overview

Use the download button to access the HMC253AQS24ETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC25, or try a keyword search, such as RF/Microwave Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
