HMC253QS24E - Analog Devices

Description: Analog Devices Hittite HMC253QS24E, RF Switch Circuit 2.5GHz Single SP8T 24dB Isolation CMOS/TTL 24-Pin QSOP

Download HMC253QS24E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

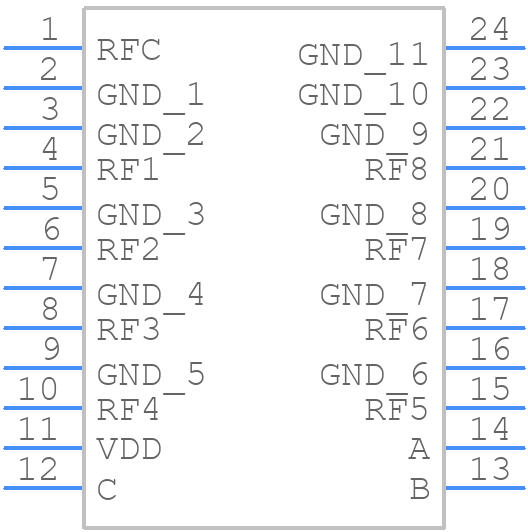

HMC253QS24E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC253QS24E - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - HMC253
click to zoom
3D Models
HMC253QS24E - Analog Devices - 3D model - Small Outline Packages - HMC253
click to zoom

HMC253QS24E Details

  • Manufacturer Part Number:

    HMC253QS24E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SMT, QSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    HRQ-24-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • 1dB Compression Point:

    23 dBm

  • Additional Feature:

    CMOS/TTL COMPATIBLE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    23.98 dBm

  • Insertion Loss-Max:

    2.4 dB

  • Isolation-Min:

    24 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • On Time-Nom:

    0.1 µs

  • Operating Frequency-Max:

    2500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SSOP24,.24

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    SP8T

  • Supply Current-Max:

    9 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.29

HMC253QS24E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter the power supply.
  • The HMC253QS24E requires a single +5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The Vcc pin should be connected to a clean power supply, and the Vee pin should be connected to a quiet ground.
  • The HMC253QS24E can operate up to 24 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout. In general, it's recommended to operate the device at frequencies below 18 GHz for optimal performance.
  • The HMC253QS24E has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or a thermal pad to dissipate heat. Avoid touching the device with bare hands to prevent thermal damage.
  • The HMC253QS24E is a sensitive device and requires proper ESD protection. Use ESD-safe handling and storage procedures, and consider using ESD protection devices such as TVS diodes or ESD arrays to protect the device from electrostatic discharge.
