HMC253QS24ETR - Analog Devices

Description: RF Switch SP8T 0MHz to 2.5GHz 24dB 24-Pin QSOP T/R

Download HMC253QS24ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

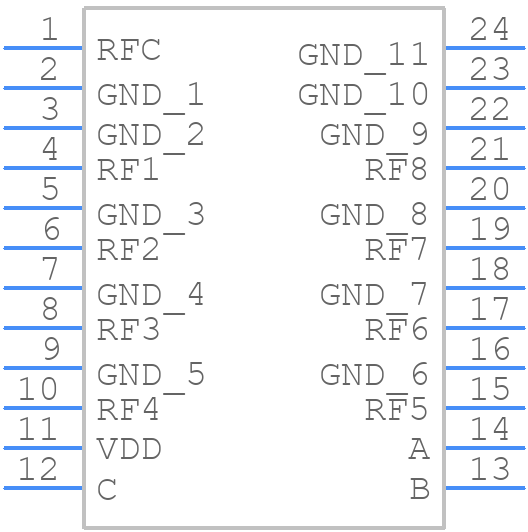

Symbol
HMC253QS24ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC253QS24ETR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - QSOP(Height 1.75mm)
click to zoom
3D Models
HMC253QS24ETR - Analog Devices - 3D model - Small Outline Packages - QSOP(Height 1.75mm)
click to zoom

HMC253QS24ETR Details

  • Manufacturer Part Number:

    HMC253QS24ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    HRQ-24-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • 1dB Compression Point:

    23 dBm

  • Additional Feature:

    CMOS COMPATIBLE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    23.98 dBm

  • Insertion Loss-Max:

    2.4 dB

  • Isolation-Min:

    24 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • On Time-Nom:

    0.1 µs

  • Operating Frequency-Max:

    2500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SSOP24,.24

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    SP8T

  • Supply Current-Max:

    9 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • VSWR-Max:

    1.29

HMC253QS24ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC253QS24ETR requires a single 5V supply. Ensure the voltage supply is clean and regulated, and decouple the power pins with 0.1uF and 10uF capacitors to minimize noise and ripple.
  • The HMC253QS24ETR can operate up to 24 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout and design.
  • The HMC253QS24ETR has a parallel interface that can be connected to a microcontroller or FPGA using a suitable interface circuit. Ensure the interface circuit is designed to match the impedance and voltage levels of the HMC253QS24ETR.
  • The typical current consumption of the HMC253QS24ETR is around 350mA, but this can vary depending on the operating frequency, temperature, and other factors.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC253QS24ETR Overview

Use the download button to access the HMC253QS24ETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC25, or try a keyword search, such as RF/Microwave Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
