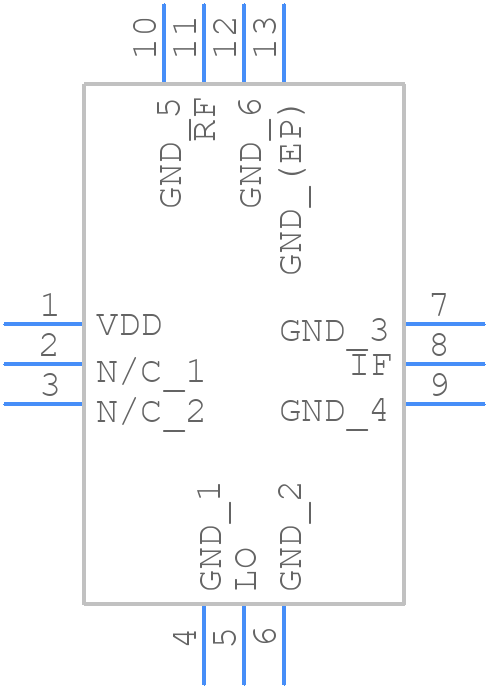

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for HMC264LC3B
- Part Number HMC264LC3B
- Manufacturer Analog Devices
- Pin Count 13
- Part Category Integrated Circuit
- Package Category Pull-back Quad Flat No-lead
- Footprint Name Pull-back Quad Flat No-lead - HMC264LC3B
- Released Date Aug 11, 2015
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HMC264LC3B Details
-
Manufacturer Part Number:
HMC264LC3B
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
3 X 3 MM, ROHS COMPLIANT, LEADLESS, SMT, 12 PIN
-
Pin Count:
12
-
Manufacturer Package Code:
HE-12-1
-
Country Of Origin:
USA
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
HMC264LC3B Frequently Asked Questions (FAQs)
-
A good PCB layout for the HMC264LC3B involves using a 4-layer board with a solid ground plane, placing the device near the center of the board, and using thermal vias to dissipate heat. A heat sink or thermal pad can also be used to improve thermal management.
-
To optimize the performance of the HMC264LC3B, it's essential to carefully select the input and output matching networks, ensure proper biasing and termination, and optimize the device's operating conditions (e.g., temperature, voltage, and current) for the specific application.
-
When handling the HMC264LC3B, it's crucial to follow proper ESD protection procedures, such as using an ESD wrist strap, mat, or workstation, and storing the device in an anti-static bag or container. Avoid touching the device's pins or exposing it to static electricity.
-
To troubleshoot issues with the HMC264LC3B, start by verifying the device's operating conditions, checking for proper biasing and termination, and ensuring that the input and output matching networks are correctly designed. Use simulation tools or measurement equipment to identify and isolate the problem.
-
The HMC264LC3B has undergone various reliability and qualification tests, including temperature cycling, humidity testing, and mechanical stress testing, to ensure its performance and reliability in harsh environments.
Trust Checks
Community Provided
System Verified
Community Approved
HMC264LC3B Overview
Use the download button to access the HMC264LC3B schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC26,
or try a keyword search, such as RF/Microwave Mixers
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
