HMC272AMS8ETR - Analog Devices

Description: RF Mixer SGL-BAL mix SMT, 1.7 - 3.0 GHz

Download HMC272AMS8ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

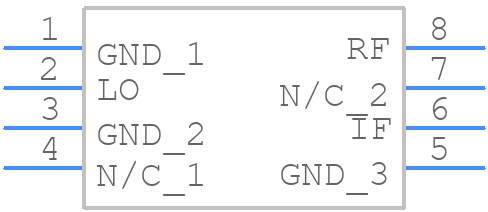

HMC272AMS8ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC272AMS8ETR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - H272
click to zoom
3D Models
HMC272AMS8ETR - Analog Devices - 3D model - Small Outline Packages - H272
click to zoom

HMC272AMS8ETR Details

  • Manufacturer Part Number:

    HMC272AMS8ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRM-8-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • RF/Microwave Device Type:

    SINGLE BALANCED

  • Surface Mount:

    YES

  • Technology:

    GAAS

HMC272AMS8ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC272AMS8ETR requires a single 5V supply. Ensure the voltage supply is clean and regulated, and decouple the power pins with 0.1uF and 10uF capacitors. Bias the chip with a 50 ohm termination resistor.
  • The HMC272AMS8ETR can operate up to 20 GHz, but the maximum frequency depends on the specific application and PCB layout. Consult the datasheet and application notes for more information.
  • Use a shielded enclosure, keep the PCB compact, and use a common mode choke or ferrite bead to filter the power supply. Ensure the signal traces are properly terminated and use a ground plane to reduce radiation.
  • The HMC272AMS8ETR has a thermal pad on the bottom of the package. Use a thermal interface material (TIM) and a heat sink or thermal pad to dissipate heat. Ensure good airflow and keep the ambient temperature below 85°C.
